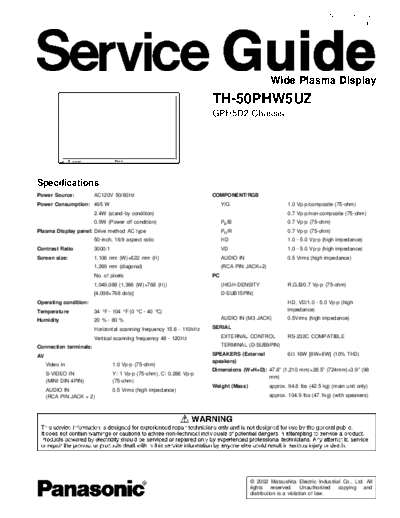

Image preview - the first page of the document



>> Download GPH5D2 TH-50PHW5UZ documenatation <<

Text preview - extract from the document

                                                                                                               ORDER NO. ITD0207016C1
                                                                                                                                  B02




                                                                                              Wide Plasma Display
                                                                      TH-50PHW5UZ
                                                                      GPH5D2 Chassis




Specifications
Power Source:           AC120V 50/60Hz                                COMPONENT/RGB
Power Consumption: 495 W                                                   Y/G                        1.0 Vp-p/composite (75-ohm)
                        2.4W (stand-by condition)                                                     0.7 Vp-p/non-composite (75-ohm)
                        0.9W (Power off condition)                         PB/B                       0.7 Vp-p (75-ohm)
Plasma Display panel: Drive method AC type                                 PR/R                       0.7 Vp-p (75-ohm)
                        50-inch, 16:9 aspect ratio                         HD                         1.0 - 5.0 Vp-p (high impedance)
Contrast Ratio          3000:1                                             VD                         1.0 - 5.0 Vp-p (high impedance)
Screen size:            1,106 mm (W)
