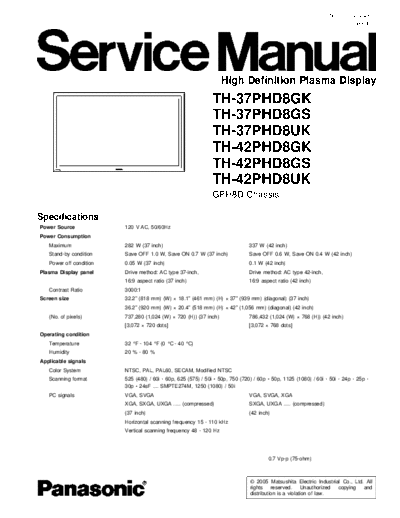

Image preview - the first page of the document
>> Download GPH8D TH-37PHD8GK TH-37PHD8GS TH-37PHD8UK TH-42PHD8GK TH-42PHD8GS TH-42PHD8UK documenatation <<Text preview - extract from the document ORDER NO. ITD0508042CE
D10 Canada: B07
High Definition Plasma Display
TH-37PHD8GK
TH-37PHD8GS
TH-37PHD8UK
TH-42PHD8GK
TH-42PHD8GS
TH-42PHD8UK
GPH8D Chassis
Specifications
Power Source 120 V AC, 50/60Hz
Power Consumption
Maximum 282 W (37 inch) 337 W (42 inch)
Stand-by condition Save OFF 1.0 W, Save ON 0.7 W (37 inch) Save OFF 0.6 W, Save ON 0.4 W (42 inch)
Power off condition 0.05 W (37 inch) 0.1 W (42 inch)
Plasma Display panel Drive method: AC type 37-inch, Drive method: AC type 42-inch,
16:9 aspect ratio (37 inch) 16:9 aspect ratio (42 inch)
Contrast Ratio 3000:1
Screen size 32.2" (818 mm) (W)
