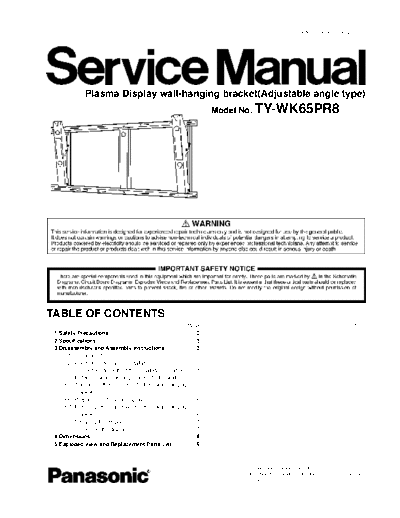

Image preview - the first page of the document
>> Download TY-WK65PR8 documenatation <<
Text preview - extract from the document
Order Number ITD0812161CE
Plasma Display wall-hanging bracket(Adjustable angle type)
Model No. TY-WK65PR8
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Disassembly and Assembly Instructions ---------------- 3
3.1. Components ------------------------------------------------ 3
3.2. Points to note during installation----------------------- 4
3.3. Check the strength of the installation location------ 4
3.4. Install the wall-hanging bracket to the wall---------- 5
3.5. Adjusting the angle of the wall-hanging
bracket ------------------------------------------------------- 5
3.6. Prepare the Plasma Display ---------------------------- 6
3.7. Installing the display to the wall-hanging
bracket ------------------------------------------------------- 6
3.8. Securing the display -------------------------------------- 7
3.9. Removing the display------------------------------------- 7
4 Dimensions--------------------------------------------------------- 8
5 Exploded View and Replacement Parts List ------------ 9
