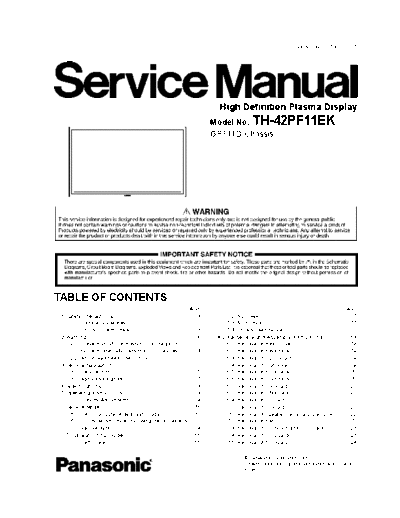

Image preview - the first page of the document
>> Download th_42pf11ek documenatation <<
Text preview - extract from the document
Order Number PCZ0810171CE
High Definition Plasma Display
Model No. TH-42PF11EK
GPF11D Chassis
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 7.2. No Power--------------------------------------------------- 17
1.1. General Guidelines---------------------------------------- 3 7.3. No Picture-------------------------------------------------- 17
1.2. Touch-Current Check ------------------------------------- 3 7.4. Local screen failure-------------------------------------- 18
2 Warning -------------------------------------------------------------- 4 8 Disassembly and Assembly Instructions--------------- 19
2.1. Prevention of Electrostatic Discharge (ESD) 8.1. Removal of Rear Cover -------------------------------- 19
to Electrostatically Sensitive (ES) Devices---------- 4 8.2. Removal of HA-Board----------------------------------- 19
2.2. About lead free solder (PbF)---------------------------- 5 8.3. Removal of HDE-Board -------------------------------- 19
3 Service Navigation ----------------------------------------------- 6 8.4. Removal of Slot Block ---------------------------------- 19
3.1. Service Hint ------------------------------------------------- 6 8.5. Removal of HX-Board----------------------------------- 20
3.2. Applicable signals ----------------------------------------- 7 8.6. Removal of DS-Board----------------------------------- 20
4 Specifications ----------------------------------------------------- 8 8.7. Removal of PB-Board----------------------------------- 20
5 Operating Instructions------------------------------------------ 9 8.8. Removal of DN-Board ---------------------------------- 21
5.1. Options Adjustments-------------------------------------- 9 8.9. Removal of D-Board------------------------------------- 21
6 Service Mode -----------------------------------------------------11 8.10. Removal of P-Board------------------------------------- 21
6.1. CAT (Computer Aided Test) mode ------------------- 11 8.11. Removal of Speaker Terminal Block (L, R) -------- 22
6.2. IIC mode structure (following items value is 8.12. Removal of Fan------------------------------------------- 22
sample data) -----------------------------------------------14 8.13. Removal of SU-Board and SD-Board--------------- 23
7 Troubleshooting Guide ----------------------------------------15 8.14. Removal of SC-Board----------------------------------- 23
7.1. Self Check--------------------------------------------------15 8.15. Removal of SS-Board----------------------------------- 24
