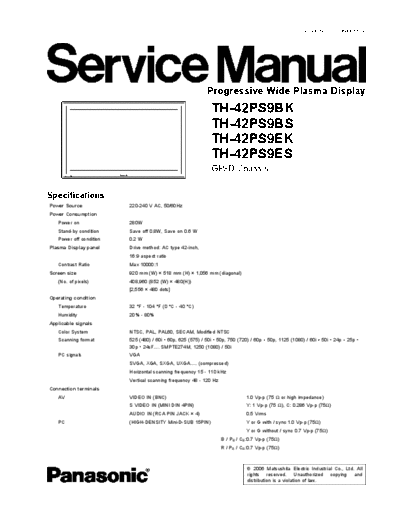

Image preview - the first page of the document



>> Download th_42ps9eb_ks documenatation <<

Text preview - extract from the document

                                                                                                      ORDER NO. PCZ0608051CE




                                                           Progressive Wide Plasma Display
                                                             TH-42PS9BK
                                                             TH-42PS9BS
                                                             TH-42PS9EK
                                                             TH-42PS9ES
                                                             GP9D Chassis


Specifications
Power Source             220-240 V AC, 50/60Hz
Power Consumption
   Power on              280W
   Stand-by condition    Save off 0.8W, Save on 0.6 W
   Power off condition   0.2 W
Plasma Display panel     Drive method: AC type 42-inch,
                         16:9 aspect ratio
   Contrast Ratio        Max 10000:1
Screen size              920 mm (W)
