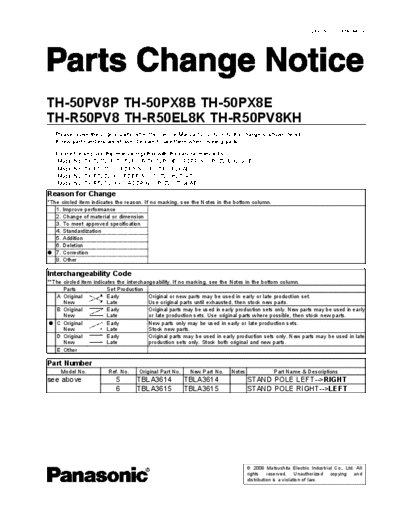

Image preview - the first page of the document



>> Download 4stand_pole_e_56 documenatation <<

Text preview - extract from the document

                                                                                                            ORDER NO.ITD0809099PE




TH-50PV8P TH-50PX8B TH-50PX8E
TH-R50PV8 TH-R50EL8K TH-R50PV8KH
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
   If new part numbers are shown, be sure to use them when ordering parts.

   Please   file and use this manual together with the service manual for
    Model   No. TH-50PV8P TH-50PX8B TH-50PX8E ORDER NO. PCZ0803019CE
    Model   No. TH-R50PV8 ORDER NO. PCZ0804026AE
    Model   No. TH-R50EL8K ORDER NO. PCZ0806078AE
    Model   No. TH-R50PV8KH ORDER NO. PCZ0807090AE

Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
      Parts              Set Production
    A Original           Early            Original or new parts may be used in early or late production set.
      New                Late             Use original parts until exhausted, then stock new parts.
    B Original           Early            Original parts may be used in early production sets only. New parts may be used in early
      New                Late             or late production sets. Use original parts where possible, then stock new parts.
    C Original           Early            New parts only may be used in early or late production sets.
      New                Late             Stock new parts.
    D Original           Early            Original parts may be used in early production sets only. New parts may be used in late
      New                Late             production sets only. Stock both original and new parts.
    E Other

Part Number
     Model No.          Ref. No.     Original Part No.    New Part No.     Notes              Part Name & Descriptions
see above                   5       TBLA3614             TBLA3614                  STAND POLE LEFT-->RIGHT
                            6       TBLA3615             TBLA3615                  STAND POLE RIGHT-->LEFT
