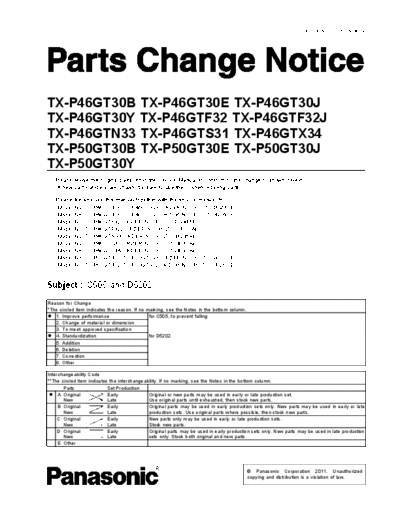

                                                                                                                   ORDER NO. ITD1105038PE




TX-P46GT30B TX-P46GT30E TX-P46GT30J
TX-P46GT30Y TX-P46GTF32 TX-P46GTF32J
TX-P46GTN33 TX-P46GTS31 TX-P46GTX34
TX-P50GT30B TX-P50GT30E TX-P50GT30J
TX-P50GT30Y
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please   file and use this manual together with the service manual for
    Model   No. TX-P46GT30B TX-P46GT30Y ORDER NO. PCZ1103023CE
    Model   No. TX-P46GT30E TX-P46GT30J ORDER NO. PCZ1103024CE
    Model   No. TX-P46GTF32 ORDER NO. PCZ1103034AE
    Model   No. TX-P46GTF32J ORDER NO. PCZ1103035AE
    Model   No. TX-P46GTN33 ORDER NO. PCZ1103036AE
    Model   No. TX-P46GTS31 ORDER NO. PCZ1103037AE
    Model   No. TX-P46GTX34 ORDER NO. PCZ1103038AE
    Model   No. TX-P50GT30B TX-P50GT30Y ORDER NO. PCZ1103025CE
    Model   No. TX-P50GT30E TX-P50GT30J ORDER NO. PCZ1103026CE


Subject : C505 and D5202
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance                      for C505, to prevent falling
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization                          for D5202
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             Original or new parts may be used in early or late production set.
       New                  Late              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             Original parts may be used in early production sets only. New parts may be used in late production
       New                  Late              sets only. Stock both original and new parts.
     E Other
