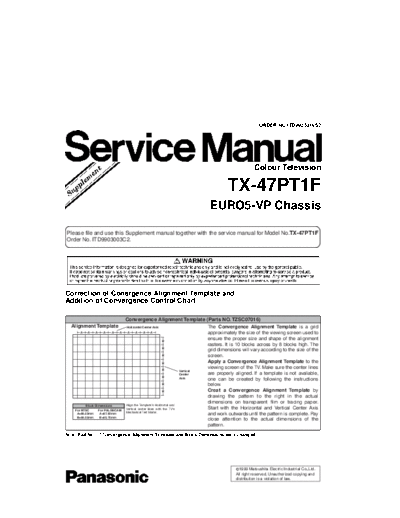

Image preview - the first page of the document
>> Download sm_tx-47pt1f_-_euro5vp_-_supplement1_159 documenatation <<
Text preview - extract from the document
ORDER NO.ITD9905016S2
Colour Television
TX-47PT1F
EURO5-VP Chassis
Please file and use this Supplement manual together with the service manual for Model No.TX-47PT1F
Order No. ITD9903003C2.
Correction of Conergence Alignment Template and
Addition of Convergence Control Chart
Convergence Alignment Template (Parts NO. TZSC07016)
Alignment Template Holizontal Center Axis The Convergence Alignment Template is a grid
A A A A A A A A A A approximately the size of the viewing screen used to
B
ensure the proper size and shape of the alignment
rasters. It is 10 blocks across by 8 blocks high. The
B
grid dimensions will vary according to the size of the
B screen.
B Apply a Convergence Alignment Template to the
B
viewing screen of the TV. Make sure the center lines
Vertical
Center are properly aligned. If a template is not avaliable,
B Axis one can be created by following the instructions
B below.
B Creat a Convergence Alignment Template by
drawing the pattern to the right in the actual
dimensions on transparent film or tracing paper.
Block Dimensions Align the Template's Horizontal and
For NTSC For PAL/SECAM Vertical center lines with the TV's Start with the Horizontal and Vertical Center Axis
Mechanical Test Marks.
A=86.02mm A=87.82mm and work outwards until the pattern is complete. Pay
B=66.50mm B=65.75mm
close attention to the actual dimensions of the
pattern.
Note: Part No. of Convergence Alignment Template and Block Dimensions were changed.
1999 Matsushita Electric Industrial Co.,Ltd.
All right reserved. Unauthorized copying and
distribution is a violation of law.
TX-47PT1F
Convergence Control Chart
Service2
Point convergence
Access
N BLUE KEY
POWER
ADJ
R-POINT PIP R-POINT
EXIT?
CURSOR DATA - +
(R+G+B) A , B , C , D
TV/AV
E , F , G , H
ADJ
R-LINE PIP R-LINE
CURSOR DATA - +
(R+G+B) A , B , C , D
TV/AV
E , F , G , H
ADJ
R-EASY2 PIP R-EASY2
DATA - +
CURSOR
(R+G+B) A , B , C , D
TV/AV
E , F , G , H
ADJ
R-PERI- PIP R-PERI-
CURSOR DATA - +
(Out of screen point) (R+G+B) (For factory) A , B , C , D
TV/AV E , F , G , H
G- R- R-
A
CURSOR CURSOR CURSOR
Green pattarn RED pattarn Yellow pattarn
ADJ:G ADJ:R SOUND ADJ:R
G- SOUND G- G-
CURSOR CURSOR CURSOR
SOUND White pattarn Cyan pattarn Yellow pattarn
ADJ:G SOUND ADJ:G ADJ:G
B- SOUND R- B- B-
CURSOR CURSOR CURSOR CURSOR
White pattarn White pattarn Cyan pattarn Blue pattarn
ADJ:B ADJ:R ADJ:B ADJ:B
-2-
TX-47PT1F
Convergence Control Chart
SET UP STORE? N C
B YES F COPY FROM?
NO
P-1:NTSC
STORE the DATA P-2:PAL
to each position P-3:COPY BOX
P-4:PAL(Factory)
5
C
PICTURE MENU
MENU RH:1FC9
D CLEAR? G
RV:2082
To zero correction data POINT DATA OSD CANCEL
N or other button
2
R-
E
CURSOR
Double Crosshatch
0
0 LSI N TV/AV DATA PHASE
H TEST POS ADJ
MODE ADJ
(Test pattarn
position) Adjustment limits
TO EXIT ADJ - +
SET UP SET UP
TV/AV
TV/AV
STORE?
N or OTHER
0
SET UP
TV/AV
OSD POS ADJ
ADJ - +
0
-3-
