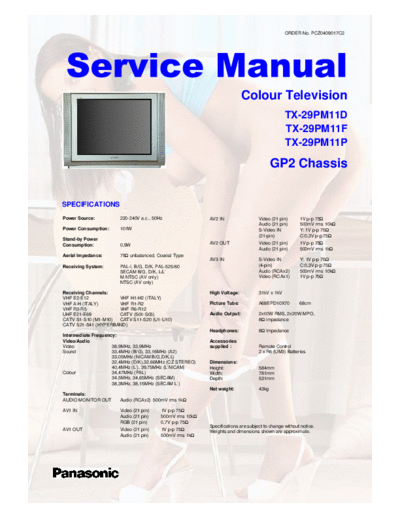

Image preview - the first page of the document
>> Download tx-29pm11p_343 documenatation <<
Text preview - extract from the document
ORDER No. PCZ0409017C2
Colour Television
TX-29PM11D
TX-29PM11F
TX-29PM11P
GP2 Chassis
SPECIFICATIONS
Power Source: 220-240V a.c., 50Hz AV2 IN Video (21 pin) 1V p-p 75!
Audio (21 pin) 500mV rms 10k!
Power Consumption: 101W S-Video IN Y: 1V p-p 75!
(21-pin) C:0,3V p-p 75!
Stand-by Power
Consumption: 0,9W AV2 OUT Video (21 pin) 1V p-p 75!
Audio (21 pin) 500mV rms 1k!
Aerial Impedance: 75! unbalanced, Coaxial Type
AV3 IN S-Video IN Y: 1V p-p 75!
Receiving System: PAL-I, B/G, D/K, PAL-525/60 (4-pin) C:0,3V p-p 75!
SECAM B/G, D/K, L/L' Audio (RCAx2) 500mV rms 10k!
M.NTSC (AV only) Video (RCAx1) 1V p-p 75!
NTSC (AV only)
Receiving Channels: High Voltage: 31kV ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
