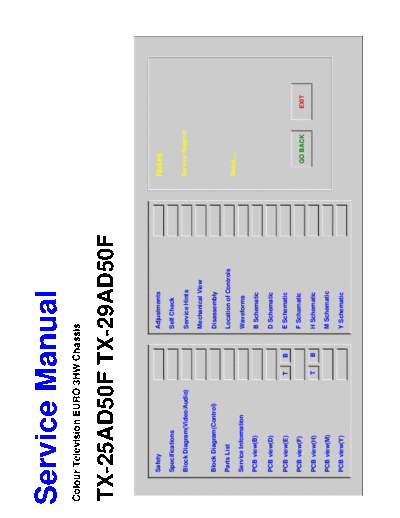

Image preview - the first page of the document
>> Download EURO3 HW chassis documenatation <<
Text preview - extract from the document
Service Manual
Colour Television EURO 3HW Chassis
TX-25AD50F TX-29AD50F
Safety Adjustments Notes
Specifications Self Check
Block Diagram(Video/Audio) Service Hints Service Support
Mechanical View
Block Diagram(Control) Disassembly
Parts List Location of Controls
About....
Service Information Waveforms
PCB view(B) B Schematic
PCB view(D) D Schematic
PCB view(E) T B E Schematic
PCB view(F) F Schematic
GO BACK EXIT
PCB view(H) T B H Schematic
PCB view(M) M Schematic
PCB view(Y) Y Schematic
ORDER NO. SM-96050
Service Manual Colour Television
TX-29AD50F
TX-25AD50F
EURO-3H Chassis
Specifications Technische Daten
(Information in brackets { } refers to TX-25AD50F) (Werte in klammern { } gelten nur fur TX-25AD50F)
Power Source : 220 - 240 V AC, 50Hz Netzpannung : 220 - 240 V AC, 50Hz
Power Consumption : 159W {149W} Leistungsaufnahme : 159W {149W}
Aerial Impedance : 75W unbalanced, Coaxial Type Antennenimpedanz : 75W asymmetrisch, Koaxial- Typ
Receiving System : PAL B/G, D/K, I, H, PAL - 60 Empfangssystem : PAL B/G, D/K, I, H, PAL - 60
SECAM B/G, D/K, L/L' SECAM B/G, D/K, L/L'
M.NTSC, NTSC (AV Only) M.NTSC, NTSC (nur AV Eingang)
Receiving Channels : VHF E2 - E12 Empfangsbereiche : VHF E2 - E12
VHF H1 - H2 (ITALY) VHF A - H (ITALY) VHF H1 - H2 (ITALY) VHF A - H (ITALY)
VHF R1 - R2 VHF R3 - R5 VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69 VHF R6 - R12 UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10) CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (HYPERBAND) CATV S11 - S20 (U1 - U10) CATV S21 - S41 (HYPERBAND)
Intermediate Frequency : Zwischenfrequenz :
Video 38.9MHz,34MHz Video 38.9MHz,34MHz
Sound 32.9MHz,33.4MHz Sound 32.9MHz,33.4MHz
33.16MHz,32.4MHz 33.16MHz,32.4MHz
40.4MHz,34.05MHz,33.05MHz 40.4MHz,34.05MHz,33.05MHz
Colour 34.65MHz,34.47MHz,34.5MHz Colour 34.65MHz,34.47MHz,34.5MHz
Video / AudioTerminals Video / Audio Anschl◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
