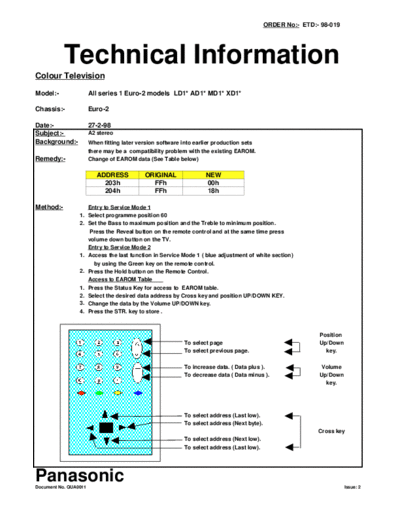

                                                                                            ORDER No:- ETD:- 98-019




           Technical Information
Colour Television

Model:-                All series 1 Euro-2 models LD1* AD1* MD1* XD1*

Chassis:-              Euro-2

Date:-                 27-2-98
Subject:-              A2 stereo
Background:-           When fitting later version software into earlier production sets
                       there may be a compatibility problem with the existing EAROM.
Remedy:-               Change of EAROM data (See Table below)

                          ADDRESS           ORIGINAL               NEW
                            203h              FFh                  00h
                            204h              FFh                  18h

Method:-               Entry to Service Mode 1
                 1.    Select programme position 60
                 2.    Set the Bass to maximum position and the Treble to minimum position.
                        Press the Reveal button on the remote control and at the same time press
                       volume down button on the TV.
                       Entry to Service Mode 2
                 1.    Access the last function in Service Mode 1 ( blue adjustment of white section)
                         by using the Green key on the remote control.
                 2.    Press the Hold button on the Remote Control.
                       Access to EAROM Table
                 1.    Press the Status Key for access to EAROM table.
                 2.    Select the desired data address by Cross key and position UP/DOWN KEY.
                 3.    Change the data by the Volume UP/DOWN key.
                 4.    Press the STR. key to store .



                                                                                                            Position
                                                           To select page                                   Up/Down
                                                           To select previous page.                           key.

                                                           To increase data. ( Data plus ).                  Volume
                                                           To decrease data ( Data minus ).                 Up/Down
                                                                                                              key.




                                                           To select address (Last low).
                                                           To select address (Next byte).
                                                                                                            Cross key
                                                           To select address (Next low).
                                                           To select address (Last low).




Panasonic
Document No. QUA0011                                                                                                   Issue: 2
