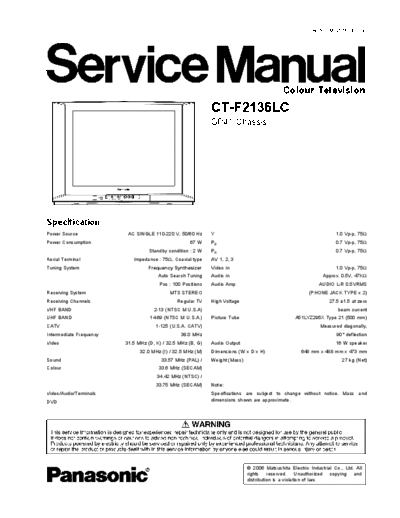

Image preview - the first page of the document
panasonic_ct_f2136lc_chgp_41_630


>> Download panasonic_ct_f2136lc_chgp_41_630 documenatation <<

Text preview - extract from the document
                                                                                                       Order No. MTV0601437CE




                                                                                            Colour Television
                                                             CT-F2136LC
                                                             GP41 Chassis




Specification
Power Source              AC SINGLE 110-220 V, 50/60 Hz      Y                                                      1.0 Vp-p, 75
Power Consumption                                   67 W     PB                                                     0.7 Vp-p, 75
                                   Standby condition : 2 W   PR                                                     0.7 Vp-p, 75
Aerial Terminal             Impedance : 75, Coaxial type     AV 1, 2, 3
Tuning System                     Frequency Synthesizer      Video in                                               1.0 Vp-p, 75
                                       Auto Search Tuning    Audio in                                         Approx. 0.5V, 47K
                                       Pos : 100 Positions   Audio Amp                                       AUDIO L-R 0.5VRMS
Receiving System                            MTS STEREO                                                  (PHONE JACK TYPE x 2)
Receiving Channels                             Regular TV    High Voltage                                        27.5
