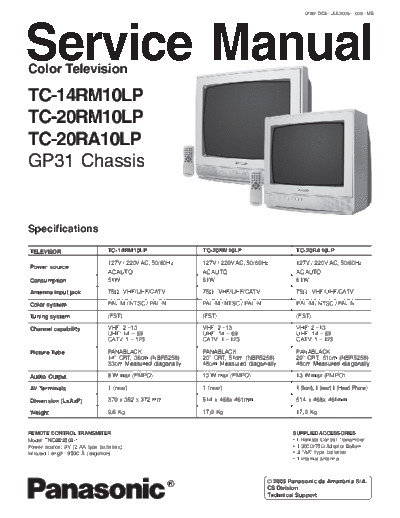

Image preview - the first page of the document
>> Download tc_14rm10lp_tc_20rm10lp_tc_20ra10lp_service_101 documenatation <<
Text preview - extract from the document
Order DCS - JUL2005 - 003 - MS
Service Manual
Color Television
TC-14RM10LP
TC-20RM10LP
TC-20RA10LP
GP31 Chassis
Specifications
TELEVISOR TC-14RM10LP TC-20RM10LP TC-20RA10LP
127V / 220V AC, 50/60Hz 127V / 220V AC, 50/60Hz 127V / 220V AC, 50/60Hz
Power source
AC AUTO AC AUTO AC AUTO
Consumption 51W 61W 61W
Antenna input jack 75 - VHF/UHF/CATV 75 - VHF/UHF/CATV 75 - VHF/UHF/CATV
Color system PAL-M / NTSC / PAL-N PAL-M / NTSC / PAL-N PAL-M / NTSC / PAL-N
Tuning system (FST) (FST) (FST)
Channel capability VHF: 2 ~13 VHF: 2 ~13 VHF: 2 ~13
UHF: 14 ~ 69 UHF: 14 ~ 69 UHF: 14 ~ 69
CATV: 1 ~ 125 CATV: 1 ~ 125 CATV: 1 ~ 125
Picture Tube PANABLACK PANABLACK PANABLACK
14" CRT, 36cm (NBR5258) 20" CRT, 51cm (NBR5258) 20" CRT, 51cm (NBR5258)
33cm Measured diagonally 48cm Measured diagonally 48cm Measured diagonally
Audio Output 8 W max (PMPO) 13 W max (PMPO) 13 W max (PMPO)
AV Terminals 1 (rear) 1 (rear) 1 (front), 1 (rear) 1 (Head Phone)
Dimension (LxAxP) 370 x 352 x 372 mm 514 x 468x 461mm 514 x 468x 461mm
Weight 9,6 Kg 17,0 Kg 17,0 Kg
REMOTE CONTROL TRANSMITER: SUPPLIED ACCESSORIES:
