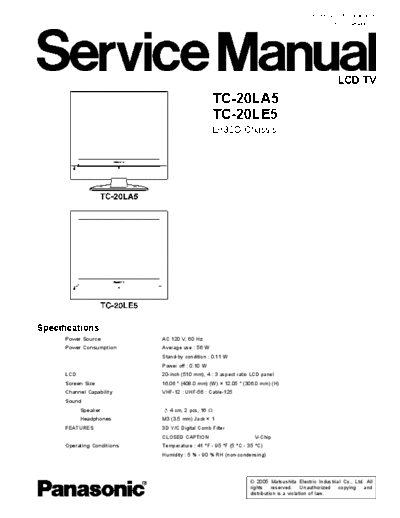

Image preview - the first page of the document
>> Download PANASONIC TC-20LA5 TC-20LE5 CHASSIS LH32G documenatation <<Text preview - extract from the document ORDER NO. ITD0503008CE
B05 Canada:B07
LCD TV
TC-20LA5
TC-20LE5
LH32G Chassis
Specifications
Power Source AC 120 V, 60 Hz
Power Consumption Average use : 56 W
Stand-by condition : 0.11 W
Power off : 0.10 W
LCD 20-inch (510 mm), 4 : 3 aspect ratio LCD panel
Screen Size 16.06 " (408.0 mm) (W)
