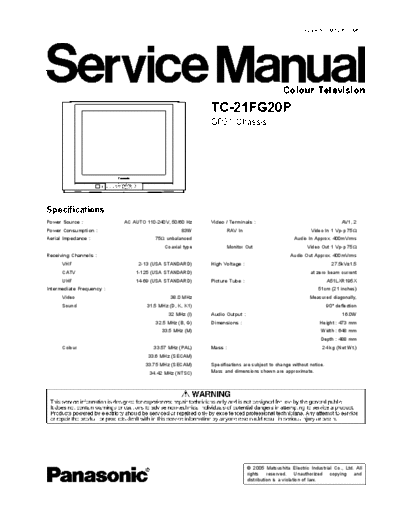

Image preview - the first page of the document
Panasonic+TC-21FG20P+Chassis+GP31


>> Download Panasonic+TC-21FG20P+Chassis+GP31 documenatation <<

Text preview - extract from the document
                                                                                                 ORDER NO. MTV0501396C3




                                                                                         Colour Television
                                                         TC-21FG20P
                                                         GP31 Chassis




Specifications
Power Source :             AC AUTO 110-240V, 50/60 Hz    Video / Terminals :                                           AV1, 2
Power Consumption :                              83W            RAV In                                Video In 1 Vp-p 75
Aerial Impedance :                     75 unbalanced                                           Audio In Approx. 400mVrms
                                          Coaxial type          Monitor Out                          Video Out 1 Vp-p 75
Receiving Channels :                                                                         Audio Out Approx. 400mVrms
      VHF                       2-13 (USA STANDARD)      High Voltage :                                           27.5kV
