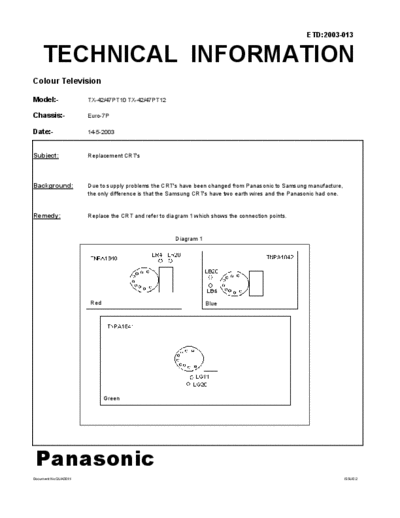

                                                                                                      ETD:2003-013


    TECHNICAL INFORMATION
Colour Television

Model:-               TX-42/47PT10 TX-42/47PT12

Chassis:-             Euro-7P

Date:-                14-5-2003


Subject:              Replacement CRT's




Background:           Due to supply problems the CRT's have been changed from Panasonic to Samsung manufacture,
                      the only difference is that the Samsung CRT's have two earth wires and the Panasonic had one.


Remedy:               Replace the CRT and refer to diagram 1 which shows the connection points.
