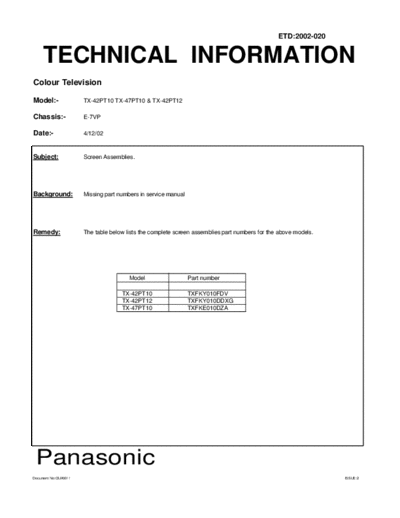

                                                                                               ETD:2002-020


     TECHNICAL INFORMATION
Colour Television

Model:-               TX-42PT10 TX-47PT10 & TX-42PT12

Chassis:-             E-7VP

Date:-                4/12/02


Subject:              Screen Assemblies.




Background:           Missing part numbers in service manual




Remedy:               The table below lists the complete screen assemblies part numbers for the above models.




                                       Model                   Part number

                                    TX-42PT10                  TXFKY010FDV
                                    TX-42PT12                  TXFKY010DDXG
                                    TX-47PT10                  TXFKE010DZA




 Panasonic
Document No:QUA0011                                                                                             ISSUE:2
