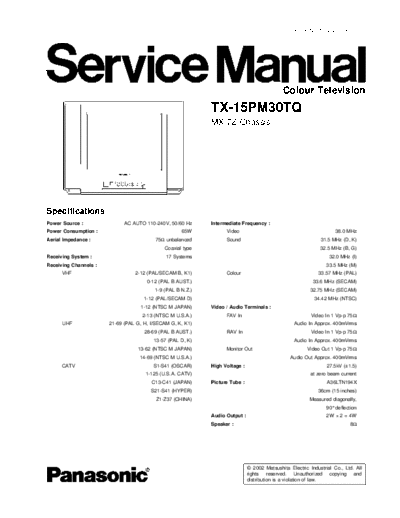

Image preview - the first page of the document
>> Download panasonic_tx-15pm30tq_chassis_mx-7z documenatation <<Text preview - extract from the document ORDER NO. MTV0207186C3-CIS
Colour Television
TX-15PM30TQ
MX-7Z Chassis
Specifications
Power Source : AC AUTO 110-240V, 50/60 Hz Intermediate Frequency :
Power Consumption : 65W Video 38.0 MHz
Aerial Impedance : 75 unbalanced Sound 31.5 MHz (D, K)
Coaxial type 32.5 MHz (B, G)
Receiving System : 17 Systems 32.0 MHz (I)
Receiving Channels : 33.5 MHz (M)
VHF 2-12 (PAL/SECAM B, K1) Colour 33.57 MHz (PAL)
0-12 (PAL B AUST.) 33.6 MHz (SECAM)
1-9 (PAL B N.Z.) 32.75 MHz (SECAM)
1-12 (PAL/SECAM D) 34.42 MHz (NTSC)
1-12 (NTSC M JAPAN) Video / Audio Terminals :
2-13 (NTSC M U.S.A.) FAV In Video In 1 Vp-p 75
UHF 21-69 (PAL G, H, I/SECAM G, K, K1) Audio In Approx. 400mVrms
28-69 (PAL B AUST.) RAV In Video In 1 Vp-p 75
13-57 (PAL D, K) Audio In Approx. 400mVrms
13-62 (NTSC M JAPAN) Monitor Out Video Out 1 Vp-p 75
14-69 (NTSC M U.S.A.) Audio Out Approx. 400mVrms
CATV S1-S41 (OSCAR) High Voltage : 27.5kV (
