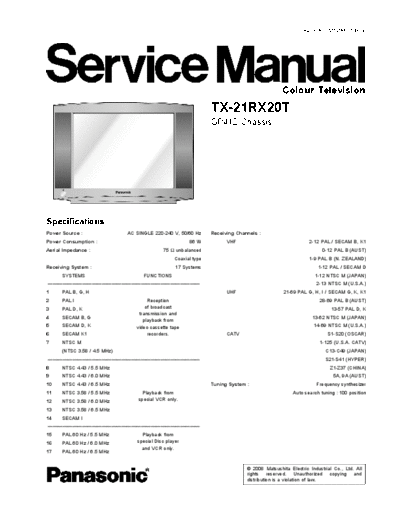

Image preview - the first page of the document
>> Download panasonic_tx-21rx20t_chassis_gp41z_sm documenatation <<
Text preview - extract from the document
ORDER NO. MTV0801643CE
Colour Television
TX-21RX20T
GP41Z Chassis
Specifications
Power Source : AC SINGLE 220-240 V, 50/60 Hz Receiving Channels :
Power Consumption : 86 W VHF 2-12 PAL / SECAM B, K1
Aerial Impedance : 75 unbalanced 0-12 PAL B (AUST)
Coaxial type 1-9 PAL B (N. ZEALAND)
Receiving System : 17 Systems 1-12 PAL / SECAM D
SYSTEMS FUNCTIONS 1-12 NTSC M (JAPAN)
-------------------------------------------------------------- 2-13 NTSC M (U.S.A.)
1 PAL B, G, H UHF 21-69 PAL G, H, I / SECAM G, K, K1
2 PAL I Reception 28-69 PAL B (AUST)
3 PAL D, K of broadcast 13-57 PAL D, K
transmission and
4 SECAM B, G 13-62 NTSC M (JAPAN)
playback from
5 SECAM D, K video cassette tape 14-69 NTSC M (U.S.A.)
6 SECAM K1 recorders. CATV S1-S20 (OSCAR)
7 NTSC M 1-125 (U.S.A. CATV)
(NTSC 3.58 / 4.5 MHz) C13-C49 (JAPAN)
-------------------------------------------------------------- S21-S41 (HYPER)
8 NTSC 4.43 / 5.5 MHz Z1-Z37 (CHINA)
9 NTSC 4.43 / 6.0 MHz 5A, 9A (AUST)
10 NTSC 4.43 / 6.5 MHz Tuning System : Frequency synthesizer
11 NTSC 3.58 / 5.5 MHz Playback from Auto search tuning : 100 position
12 NTSC 3.58 / 6.0 MHz special VCR only.
13 NTSC 3.58 / 6.5 MHz
14 SECAM I
--------------------------------------------------------------
15 PAL 60 Hz / 5.5 MHz Playback from
16 PAL 60 Hz / 6.0 MHz special Disc player
and VCR only.
17 PAL 60 Hz / 6.5 MHz
