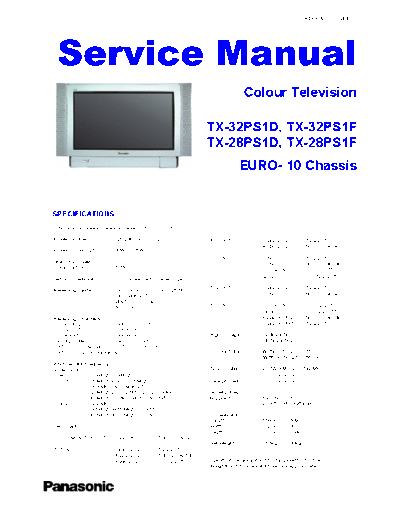

Image preview - the first page of the document
>> Download Panasonic_TX-28-32PS1D_F+Chassis+EURO+10 documenatation <<Text preview - extract from the document ORDER No. 03-SM-002
Colour Television
TX-32PS1D, TX-32PS1F
TX-28PS1D, TX-28PS1F
EURO- 10 Chassis
SPECIFICATIONS
(Information in brackets [ ] refers to models TX-28PS1D, TX-28PS1F)
Power Source: 220-240V a.c., 50Hz AV1 OUT Video (21 pin) 1V p-p 75W
Audio (21 pin) 500mV rms 1kW
Power Consumption: 90W [85W]
AV2 IN Video (21 pin) 1V p-p 75W
Stand-by Power Audio (21 pin) 500mV rms 10kW
Consumption: 1,0W
S-Video IN Y: 1V p-p 75W
(21-pin) C:0,3V p-p 75W
Aerial Impedance: 75W unbalanced, Coaxial Type
AV2 OUT Video (21 pin) 1V p-p 75W
Receiving System: PAL-I, B/G, H, D/K, PAL-525/60
SECAM B/G, D/K, L/L' Audio (21 pin) 500mV rms 1kW
M.NTSC (AV only)
NTSC (AV only) AV3 IN S-Video IN Y: 1V p-p 75W
(4-pin) C:0,3V p-p 75W
Receiving Channels: Audio (RCAx2) 500mV rms 10kW
VHF E2-E12 VHF H1-H2 (ITALY) Video (RCAx1) 1V p-p 75W
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12 High Voltage: 32,0kV
