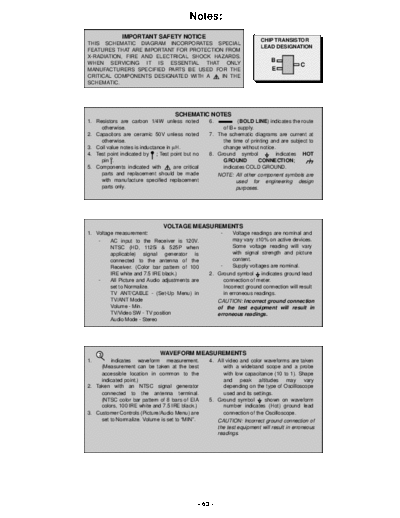

Image preview - the first page of the document
>> Download pt-47wx52f___schematic_notes documenatation <<
Text preview - extract from the document
Notes:
IMPORTANT SAFETY NOTICE
CHIP TRANSISTOR
THIS SCHEMATIC DIAGRAM INCORPORATES SPECIAL
LEAD DESIGNATION
FEATURES THAT ARE IMPORTANT FOR PROTECTION FROM
X-RADIATION, FIRE AND ELECTRICAL SHOCK HAZARDS.
WHEN SERVICING IT IS ESSENTIAL THAT ONLY
B
C
MANUFACTURERS SPECIFIED PARTS BE USED FOR THE E
CRITICAL COMPONENTS DESIGNATED WITH A IN THE
SCHEMATIC.
SCHEMATIC NOTES
1. Resistors are carbon 1/4W unless noted 6. (BOLD LINE) indicates the route
otherwise. of B+ supply.
2. Capacitors are ceramic 50V unless noted 7. The schematic diagrams are current at
otherwise. the time of printing and are subject to
