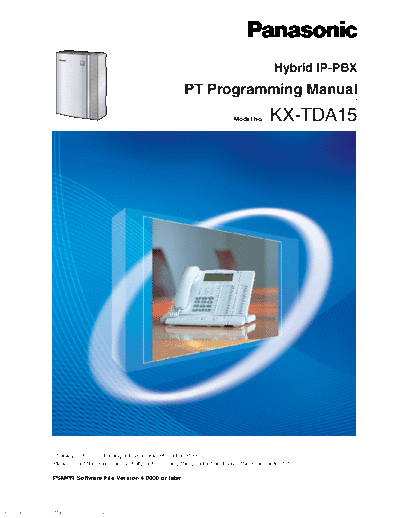

Image preview - the first page of the document



>> Download kxtda15 documenatation <<

Text preview - extract from the document

                                                                                                      Hybrid IP-PBX
                                                                    PT Programming Manual
                                                                                       Model No.    KX-TDA15




                    Thank you for purchasing a Panasonic Hybrid IP-PBX.
                    Please read this manual carefully before using this product and save this manual for future use.

                    PSMPR Software File Version 4.0000 or later




Downloaded from www.Manualslib.com manuals search engine
                 Introduction
                     About this Programming Manual
                               The PT Programming Manual is designed to serve as a reference to programming the Panasonic
                               Hybrid IP-PBX using a Panasonic proprietary telephone (PT) with display.

                               The PT Programming Manual is divided into the following sections:

                     Section 1, Overview
                               Provides an overview of programming the PBX.

                     Section 2, PT Programming
                               Serves as reference operating instructions when using a display PT to program the PBX.

                     Section 3, Appendix
                               Provides a list of all related PT programming items for each feature as Feature Programming
                               References.

                     References Found in the PT Programming Manual

                     PT Programming Manual References
                               Related sections of the PT Programming Manual are listed for your reference.

                     Feature Guide References
                               The Feature Guide explains what the PBX can do, as well as how to obtain the most of its many
                               features and facilities. Sections from the Feature Guide are listed throughout the PT Programming
                               Manual for your reference.

                     Installation Manual References
                               The Installation Manual provides instructions detailing the installation and maintenance of the PBX.
                               Sections from the Installation Manual are listed throughout the PT Programming Manual for your
                               reference.

                     Links to Other Pages and Manuals
                               If you are viewing this manual with a PC, certain items are linked to different sections of the PT
                               Programming Manual and other Hybrid IP-PBX manuals. Click on a link to jump to that section.
                               Linked items include:
