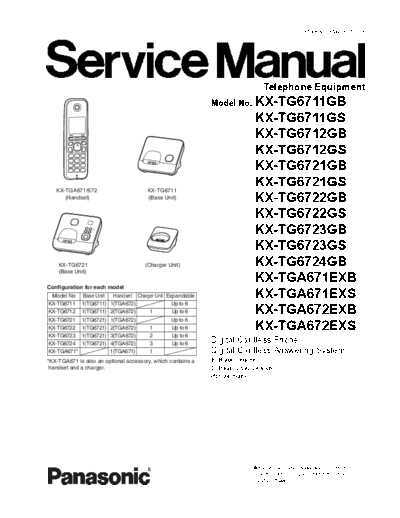

Image preview - the first page of the document
>> Download tg6711_21g_7115_final_120302 documenatation <<
Text preview - extract from the document
ORDER NO. KM41201537CE
Telephone Equipment
Model No. KX-TG6711GB
KX-TG6711GS
KX-TG6712GB
KX-TG6712GS
KX-TG6721GB
KX-TGA671/672 KX-TG6711
KX-TG6721GS
(Handset) (Base Unit)
KX-TG6722GB
KX-TG6722GS
KX-TG6723GB
KX-TG6723GS
KX-TG6721 (Charger Unit) KX-TG6724GB
(Base Unit)
KX-TGA671EXB
Configuration for each model
Model No Base Unit Handset Charger Unit Expandable KX-TGA671EXS
KX-TG6711 1(TG6711) 1(TGA672) Up to 6
KX-TG6712 1(TG6711) 2(TGA672) 1 Up to 6 KX-TGA672EXB
KX-TG6721 1(TG6721) 1(TGA672) Up to 6
KX-TG6722 1(TG6721) 2(TGA672) 1 Up to 6 KX-TGA672EXS
KX-TG6723 1(TG6721) 3(TGA672) 2 Up to 6
KX-TG6724 1(TG6721) 4(TGA672) 3 Up to 6 Digital Cordless Phone
KX-TGA671* 1(TGA671) 1 Digital Cordless Answering System
*KX-TGA671 is also an optional accessory, which contains a B: Black Version
handset and a charger. S: Pearl Silver Version
(for Germany)
