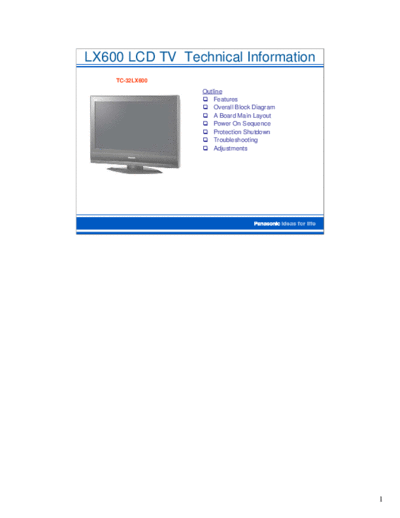

Image preview - the first page of the document
>> Download Panasonic TC-32LX600 [TM] documenatation <<Text preview - extract from the documentLX600 LCD TV Technical Information
TC-32LX600
Outline
Features
Overall Block Diagram
A Board Main Layout
Power On Sequence
Protection Shutdown
Troubleshooting
Adjustments
1
Features
Model TC-LX60 TC-LX600
Display Capability 480p/720p/1080i 480p/720p/1080i
Aspect Ratio 16:9 (Widescreen) 16:9 (Widescreen)
Aspect Control Normal, Zoom, Full, and Normal, Zoom, Full, and
Just Just
Resolution (Number of 1,049,088 (1366x768) 1,049,088 (1366x768)
Pixels) pixels pixels
Contrast Ratio Up to 3000:1 Up to 3000:1
Brightness (Panel, cd/m2) 500 500
Integrated ATSC Tuner Yes Yes
HDMI-HDCP Interface 1 2
Composite Video Input 3 3
S-Video Inputs 2 2
Component Video Input 1 1
Monitor Output 1 1
Headphone Jack Yes Yes
2
Overall Block Diagram
The TC-26/32LX60 and 600 series LCD Direct View TVs differ from previous
models in that all signal processing is accomplished on the A board. The
video processing function that had been previously accomplished by the DG
board is now performed on the A Board by IC4002. This IC serves as the
Main micro and Video /Audio Panel controller. IC4004 is a Field
Programmable Gate array that is responsible for the pixel conversion and
addressing of the Active Matrix display within the LCD Panel. This IC also
contains the low voltage differential signaling (LVDS) transmitter used for the
conversion of the 8-bit RGB video into a differential RGB output signal. The
LVDS receiver on the LCD panel converts the differential RGB output signal
from the A board into an 8-bit RGB signal that is output to the LCD Panel.
3
Board Layout
Non - Serviceable
Non - Serviceable
Non - Serviceable
This is the board layout of the TC-LX600 LCD Television. The P board, DT
board, and A board are non serviceable. The G board, AP board, and V
board are serviceable.
4
Board Layout Pictorial
P Board
