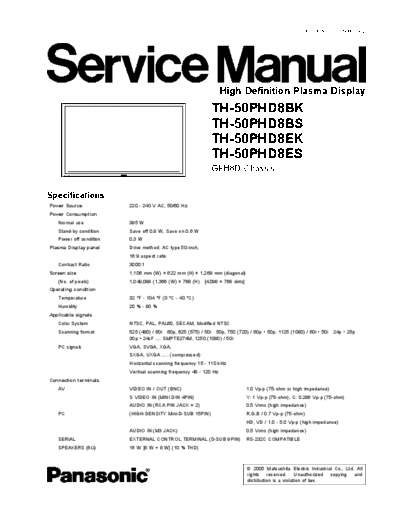

Image preview - the first page of the document
>> Download Panasonic TH-50PHD8ES TH-50PHD8BS [SM] documenatation <<Text preview - extract from the document ORDER NO.PCZ0509084C2
High Definition Plasma Display
TH-50PHD8BK
TH-50PHD8BS
TH-50PHD8EK
TH-50PHD8ES
GPH8D Chassis
Specifications
Power Source 220 - 240 V AC, 50/60 Hz
Power Consumption
Normal use 395 W
Stand-by condition Save off 0.8 W, Save on 0.6 W
Power off condition 0.3 W
Plasma Display panel Drive method: AC type 50-inch,
16:9 aspect ratio
Contrast Ratio 3000:1
Screen size 1,106 mm (W)
