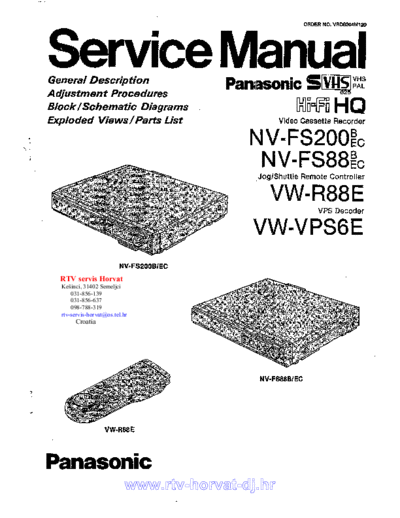

Image preview - the first page of the document
>> Download panasonic_nvfs200_vcr documenatation <<
Text preview - extract from the document
RTV servis Horvat
Kesinci, 31402 Semeljci
031-856-139
031-856-637
098-788-319
[email protected]
Croatia
www.rtv-horvat-dj.hr
TechInfo Sheet fax: 01344 853689
Audio Visual email: [email protected]
Product Group: SVHS Video Model: NV-FS200B
Date: 22/09/98 Revision No: 01 Document No: 01
Subject: Display Not Operative
SYMPTOM: The display on the unit shuts down.
CAUSE: Q1701 goes O/C due to a breakdown of D1702 caused by temperature.
REMEDY: 1. Change D1702 (MA4300H) to Part No. MA4270M.
2. Change Q1701 to Part No. 2SD973B-R.
3. Add a 2200pF Capacitor (ECKF1H222KB) between the base and
emitter of Q1701.
EFFECTIVE FROM: Serial No.: K3...........
Panasonic CS U.K. www.rtv-horvat-dj.hr Document No: 01
Model: NV-FS200B
1
TechInfo Sheet fax: 01344 853689
Audio Visual email: [email protected]
Product Group: SVHS VCR Model: NV-FS200B
Date: 22/09/98 Revision No: 01 Document No: 02
Subject: Improvement of Chroma Signal at Pause Release
SYMPTOM: Chrominance dropout is evident when the pause is released in playback
mode.
REMEDY: Please use the following to remedy this problem.
1. Add a resistor 4.7K Ohm between IC801 Pin 6 and 11 on the
chrominance/luminance pack (VEP03894).
2. Change capacitor C810 (50V 2.2uF) to 50V 1.0uF on the
chrominance/luminance pack (VEP03894). SYMPTOM:
Panasonic CS U.K. www.rtv-horvat-dj.hrModel: NV-FS200
Document No: 02
1
TechInfo Sheet fax: 01344 853689
Audio Visual email: [email protected]
Product Group:SVHS VCR Model: NV-FS88B
Date: 22/09/98 Revision No: 01 Document No: 02
Subject: Improvement of Chroma Signal at Pause Release
SYMPTOM: Chrominance dropout is evident when the pause is released in playback
mode.
REMEDY: Please use the following to remedy this problem.
1. Add a resistor 4.7K Ohm between IC801 Pin 6 and 11 on the
chrominance/luminance pack (VEP03894).
2. Change capacitor C810 (50V 2.2uF) to 50V 1.0uF on the
chrominance/luminance pack (VEP03894).
Panasonic CS U.K. www.rtv-horvat-dj.hrModel: NV-FS88B
Document No: 02
1
TechInfo Sheet fax: 01344 853689
Audio Visual email: [email protected]
Product Group: SVHS Video Model: NV-FS88B
Date: 22/09/98 Revision No: 01 Document No: 01
Subject: Display Not Operative
SYMPTOM: The display on the unit shuts down.
CAUSE: Q1701 goes O/C due to a breakdown of D1702 caused by temperature.
REMEDY: 1. Change D1702 (MA4300H) to Part No. MA4270M.
2. Change Q1701 to Part No. 2SD973B-R.
3. Add a 2200pF Capacitor (ECKF1H222KB) between the base and
emitter of Q1701.
EFFECTIVE FROM: Serial No.: K3...........
Panasonic CS U.K. www.rtv-horvat-dj.hr Document No: 01
Model: NV-FS88BB
1
