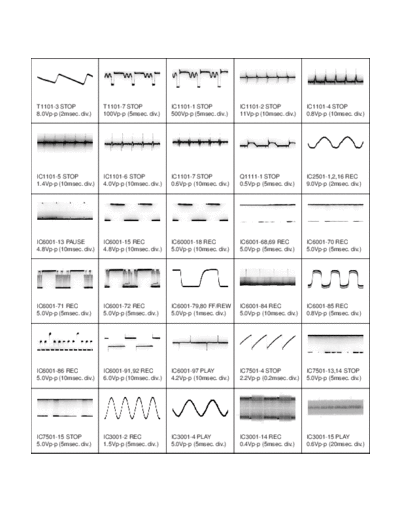

Image preview - the first page of the document
>> Download aa07wave documenatation <<
Text preview - extract from the document
T1101-3 STOP T1101-7 STOP IC1101-1 STOP IC1101-2 STOP IC1101-4 STOP 8.0Vp-p (2msec. div.) 100Vp-p (5msec. div.) 500Vp-p (5msec. div.) 11Vp-p (10msec. div.) 0.8Vp-p (10msec. div.) IC1101-5 STOP IC1101-6 STOP IC1101-7 STOP Q1111-1 STOP IC2501-1,2,16 REC 1.4Vp-p (10msec. div.) 4.0Vp-p (10msec. div.) 0.6Vp-p (10msec. div.) 0.5Vp-p (5msec. div.) 9.0Vp-p (2msec. div.) IC6001-13 PAUSE IC6001-15 REC IC60001-18 REC IC6001-68,69 REC IC6001-70 REC 4.8Vp-p (10msec. div.) 4.8Vp-p (10msec. div.) 5.0Vp-p (10msec. div.) 5.0Vp-p (5msec. div.) 5.0Vp-p (5msec. div.) IC6001-71 REC IC6001-72 REC IC6001-79,80 FF/REW IC6001-84 REC IC6001-85 REC 5.0Vp-p (5msec. div.) 5.0Vp-p (5msec. div.) 5.0Vp-p (1msec. div.) 5.0Vp-p (10msec. div.) 0.8Vp-p (5msec. div.) IC6001-86 REC IC6001-91,92 REC IC6001-97 PLAY IC7501-4 STOP IC7501-13,14 STOP 5.0Vp-p (10msec. div.) 6.0Vp-p (10msec. div.) 4.2Vp-p (10msec. div.) 2.2Vp-p (0.2msec. div.) 5.0Vp-p (5msec. div.) IC7501-15 STOP IC3001-2 REC IC3001-4 PLAY IC3001-14 REC IC3001-15 PLAY 5.0Vp-p (5msec. div.) 1.5Vp-p (5msec. div.) 5.0Vp-p (5msec. div.) 0.4Vp-p (5msec. div.) 0.6Vp-p (20msec. div.) IC3001-20 PLAY IC3001-24 REC/PLAY IC3001-37 REC/PLAY IC3001-38 REC/PLAY IC3001-42,43 PLAY 150mVp-p 5.0Vp-p (10msec. div.) 5.0Vp-p (5msec. div.) 5.0Vp-p (5msec. div.) 0.4Vp-p (20msec. div.) (20msec. div.) IC3001-48 REC IC3001-52 REC/PLAY IC4001-5,6 REC IC4001-15,16 REC/PLAY IC4001-20 REC 1.0Vp-p (20msec. div.) 2.0Vp-p (20msec. div.) 1.2Vp-p (5msec. div.) 1.2Vp-p (5msec. div.) 1.2Vp-p (5msec. div.) IC4001-21 REC/PLAY IC4001-36 REC IC4001-37 PLAY IC4001-41 REC/PLAY IC4001-42 REC/PLAY 1.2Vp-p (5msec. div.) 0.6Vp-p (20msec. div.) 0.5Vp-p (20msec. div.) 5.0Vp-p (5msec. div.) 5.0Vp-p (5msec. div.) Q4005-C REC Q4907-B REC/PLAY PK7701-8,9 REC/PLAY PK7702-13,15 REC/PLAY P501-3 REC Q4007-C REC Q4909-B REC/PLAY 5.0Vp-p (10msec. div.) 2.0Vp-p (20msec. div.) 0.3Vp-p (20msec. div.) 9.0Vp-p (5msec. div.) 1.0Vp-p (20msec. div.) P501-4 PLAY P501-9 REC/PLAY P501-10 REC P501-11 PLAY 1.2Vp-p (20msec. div.) 5.0Vp-p (10msec. div.) 0.3Vp-p (5msec. div.) 0.5Vp-p (5msec. div.)
