(VEP07998F:NV-HD636EG/EC,HD640EG/EC) (VEP07998D:NV-HD636B,HD640B/BL) (VEP07998A:NV-HD645EG/EC) (VEP07998B:NV-HD645B)
C

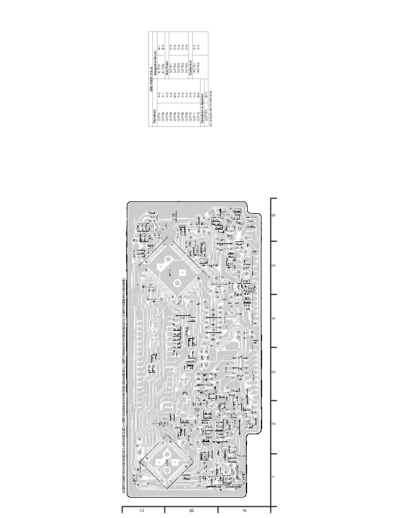

OSD PACK C.B.A.
Transistor Integrated Circuit
Q7701 A-2 IC7701 B-1
Q7702 A-1 IC7703 B-5
Q7703 A-2 Test Point
Q7704 A-2 TL7701 C-5
Q7706 B-2 TL7702 C-6
Q7707 A-2 TL7703 C-6
Q7708 A-2 TL7704 C-6
Q7709 A-3 TL7705 C-6
Q7710 A-6 Connector
B Q7711 A-6 PK7701 A-5
Q7712 B-6 PK7702 A-3
Transistor & Resistor
QR7703 B-3
ADDRESS INFORMATION
