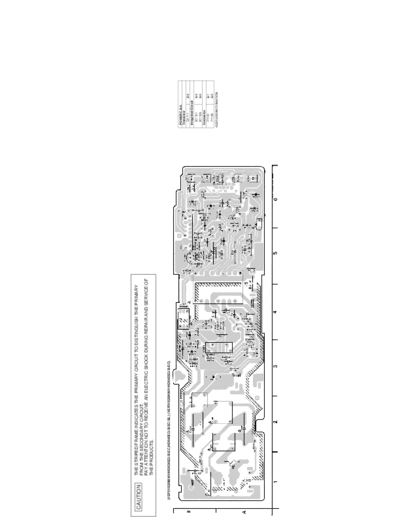

Image preview - the first page of the document
>> Download aa10pow documenatation <<
Text preview - extract from the document
THE STRIPED FRAME INDICATES THE PRIMARY CIRCUIT TO DISTINGUISH THE PRIMARY
CAUTION FROM THE SECONDARY CIRCUIT.
PAY ATTENTION NOT TO RECEIVE AN ELECTRIC SHOCK DURING REPAIR AND SERVICE OF
THE PRODUCTS.
(VEP01826M:NV-HD636EG/B/EC,HD640EG/B/EC/BL) (VEP01826H:NV-HD645EG/B/EC)
POWER C.B.A.
Transistor
Q1111 B-4
Integrated Circuit
IC1101 B-3
IC1102 B-5
Connector
P1101 B-1
P1103 B-5
