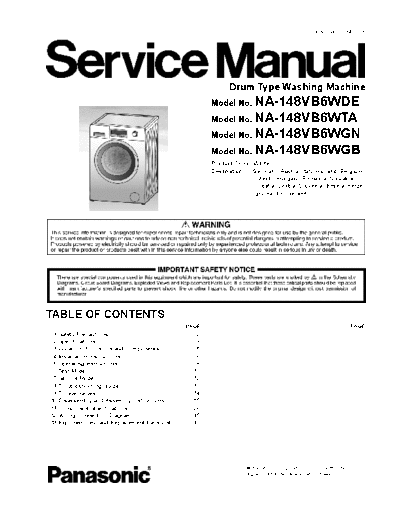

Image preview - the first page of the document



>> Download NA-148VB6 documenatation <<

Text preview - extract from the document

                                                                                                                  Order No. VES1504002CE




                                                                                    Drum Type Washing Machine
                                                                              Model No. NA-148VB6WDE
                                                                              Model No. NA-148VB6WTA
                                                                              Model No. NA-148VB6WGN
                                                                              Model No. NA-148VB6WGB
                                                                              Product Color : White
                                                                              Destination : Germany, Austlia, Italy, Holland, Belgium,
                                                                                              Czech, Hungary, Romania, Slovakia,
                                                                                              Croatia, Serbia, Slovenia, Bosnia-Herze-
                                                                                              govina, UK, Ireland




TABLE OF CONTENTS
                                                                     PAGE                                                           PAGE
 1   Safety Precautions----------------------------------------------- 2
 2   Specifications ----------------------------------------------------- 3
 3   Location of Controls and Components ------------------- 5
 4   Installation Instructions ---------------------------------------- 6
 5   Operating Instructions------------------------------------------ 8
 6   Test Mode ----------------------------------------------------------10
 7   Service Mode -----------------------------------------------------12
 8   Troubleshooting Guide ----------------------------------------13
 9   Torque Values ----------------------------------------------------14
10   Disassembly and Assembly Instructions ---------------15
11   Component Specifications -----------------------------------26
12   Wiring Connection Diagram ---------------------------------35
13   Exploded View and Replacement Parts List -----------37
