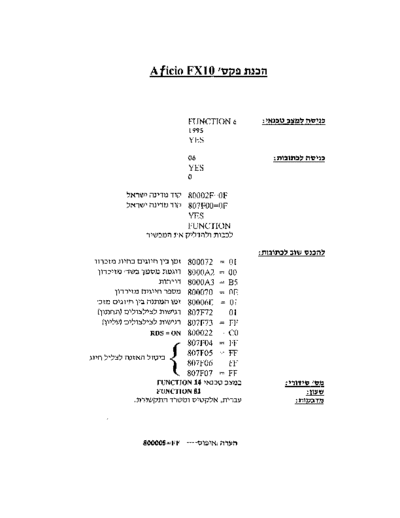

Image preview - the first page of the document



>> Download FX10 documenatation <<

Text preview - extract from the document

June 10th, 1997                                                TROUBLESHOOTING
                                                         SERVICE CALL CONDITIONS


7.4. SERVICE CALL CONDITIONS

If the Call Service indicator is lit, one of the following conditions has occurred.
(Please refer to the section 2-2-11 for details of the service call conditions.)
                       Symptom                       Error Code Sub-code   SC-code
 Scanner home position error                            9-11       71        7-71
 Charge leak current detected while the charge
                                                        9-17       11        1-11
 corona unit was activated.
 Charge leak current detected while the charge
                                                        9-17       12        1-12
 corona unit was not activated.
 Laser diode failure                                    9-20       21        2-21
 Fusing unit failure (fusing lamp at high
                                                        9-22       01        0-01
 temperature during printing)
 Fusing unit failure (fusing lamp not at printing
                                                        9-22       02        0-02
 temperature after warm-up)
 Fusing unit failure (fusing lamp at high
                                                        9-22       03        0-03
 temperature in power saver mode)
 Fusing unit failure (fusing lamp at high
                                                        9-22       04        0-04
 temperature in power saver mode)
 Fusing unit failure (fusing lamp at low temperature
                                                        9-22       05        0-05
 in power saver mode)
 Fusing unit failure (fusing lamp at low temperature
                                                        9-22       07        0-07
 during printing)
 Fusing unit failure (fusing lamp at an extremely
                                                        9-22       08        0-08
 high temperature)
 Fusing unit failure (thermistor error)                 9-22       09        0-09
 Fusing unit failure (fusing lamp at high
                                                        9-22       0A        0-0A
 temperature in power saver mode)
 Polygon mirror motor startup error                     9-23       31        3-31
 Polygon mirror motor error while printing              9-23       32        3-32
 Main motor startup error                               9-24       41        4-41
 Main motor error while printing                        9-24       42        4-42

To find out which problem has occurred, either:
