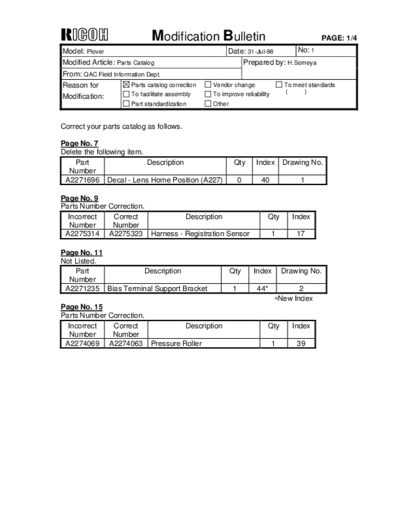

Image preview - the first page of the document
>> Download FT1008.208 documenatation <<
Text preview - extract from the document
Modification Bulletin PAGE: 1/4
Model: Plover Date: 31-Jul-98 No: 1
Modified Article: Parts Catalog Prepared by: H.Someya
From: QAC Field Information Dept.
Reason for Parts catalog correction Vendor change To meet standards
To facilitate assembly To improve reliability ( )
Modification:
Part standardization Other
Correct your parts catalog as follows.
Page No. 7
Delete the following item.
Part Description Qty Index Drawing No.
Number
A2271696 Decal - Lens Home Position (A227) 0 40 1
Page No. 9
Parts Number Correction.
Incorrect Correct Description Qty Index
Number Number
A2275314 A2275323 Harness - Registration Sensor 1 17
Page No. 11
Not Listed.
Part Description Qty Index Drawing No.
Number
A2271235 Bias Terminal Support Bracket 1 44* 2
New Index
Page No. 15
Parts Number Correction.
Incorrect Correct Description Qty Index
Number Number
A2274069 A2274063 Pressure Roller 1 39
Modification Bulletin PAGE: 2/4
Model: Plover Date: 31-Jul-98 No: 1
Page No. 17
Parts Number Correction.
Incorrect Correct Description Qty Index
Number Number
A2272254 A2272255 Transfer Assy 1 8
Page No. 19
Supply Unit Correction.
Incorrect Correct Description Qty Index Drawing No.
Number Number
A2275621 Noise Filter - 120V 0 5 3
A2275623 Noise Filter - 230V 0 5 3
A2271174 Noise Filter Bracket 0 7 3
A1285878 Spacer - 6.4mm 0 26 3
A2271109 Noise Filter Assy - 120V 1 28* 3
A2271110 Noise Filter Assy - 230V 1 28* 3
New Index
Drawing 1
Modification Bulletin PAGE: 3/4
Model: Plover Date: 31-Jul-98 No: 1
Drawing 2
Drawing 3
Modification Bulletin PAGE: 4/4
Model: Plover Date: 31-Jul-98 No: 1
MODEL V/Hz DESTINATION CODE SELIAL
NAME NUMBER
