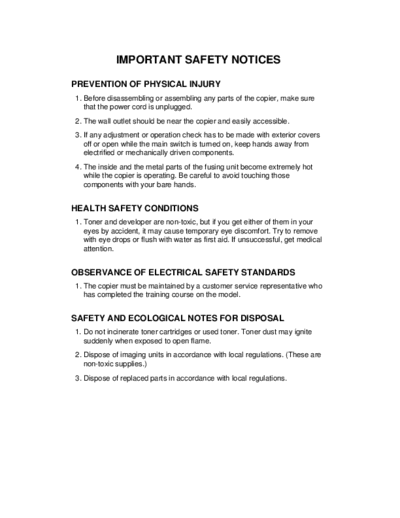

Image preview - the first page of the document



>> Download ft2012sm documenatation <<

Text preview - extract from the document

             IMPORTANT SAFETY NOTICES

PREVENTION OF PHYSICAL INJURY
1. Before disassembling or assembling any parts of the copier, make sure
   that the power cord is unplugged.
2. The wall outlet should be near the copier and easily accessible.
3. If any adjustment or operation check has to be made with exterior covers
   off or open while the main switch is turned on, keep hands away from
   electrified or mechanically driven components.
4. The inside and the metal parts of the fusing unit become extremely hot
   while the copier is operating. Be careful to avoid touching those
   components with your bare hands.


HEALTH SAFETY CONDITIONS
1. Toner and developer are non-toxic, but if you get either of them in your
   eyes by accident, it may cause temporary eye discomfort. Try to remove
   with eye drops or flush with water as first aid. If unsuccessful, get medical
   attention.


OBSERVANCE OF ELECTRICAL SAFETY STANDARDS
1. The copier must be maintained by a customer service representative who
   has completed the training course on the model.


SAFETY AND ECOLOGICAL NOTES FOR DISPOSAL
1. Do not incinerate toner cartridges or used toner. Toner dust may ignite
   suddenly when exposed to open flame.
2. Dispose of imaging units in accordance with local regulations. (These are
   non-toxic supplies.)
3. Dispose of replaced parts in accordance with local regulations.
     SECTION 1
     OVERALL
MACHINE INFORMATION
4 July 1996                                                   SPECIFICATIONS




                                                                               Information
1. SPECIFICATIONS




                                                                                 Overall
Configuration:            Desk Top
Copy Process:             Dry electrostatic transfer system
Originals:                Sheet/Book
Original Size:            Maximum: A4/8.5" x 14" (A183 copier)
                                   B4/10" x 14" (A184 copier)
Copy Paper Size:          Paper tray feed:
                             A4, 8.5" x 11", 8.5" x 13", 8.5" x 14"
                          Bypass feed:
                             Maximum: A4/8.5" x 14"
                             Minimum: A5/5.5" x 8.5"
Copy Paper Weight:        Paper tray feed: 64 to 86 g/m2, 17 to 23 lb
                          Bypass feed: 60 to 105 g/m2, 16 to 27 lb
Reproduction Ratios                          Metric Version     Inch Version
(A184 model only):                               141%
                             Enlargement                           129%
                                                 122%
                              Full Size          100%              100%
                                                   93%              93%
                              Reduction            82%              85%
                                                   71%              78%

Zoom (A184 model only):   From 70% to 141% in 1% steps
Copying Speed:            12 copies/minute (A4/8.5" x 11")
Warm-up Time:             Less than 30 seconds (at 23
