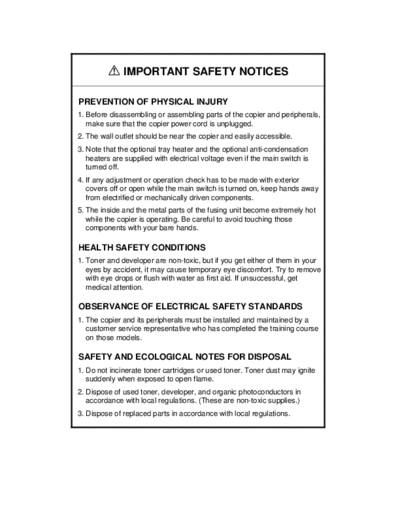

Image preview - the first page of the document



>> Download ft4015sm documenatation <<

Text preview - extract from the document

          IMPORTANT SAFETY NOTICES

PREVENTION OF PHYSICAL INJURY
1. Before disassembling or assembling parts of the copier and peripherals,
   make sure that the copier power cord is unplugged.
2. The wall outlet should be near the copier and easily accessible.
3. Note that the optional tray heater and the optional anti-condensation
   heaters are supplied with electrical voltage even if the main switch is
   turned off.
4. If any adjustment or operation check has to be made with exterior
   covers off or open while the main switch is turned on, keep hands away
   from electrified or mechanically driven components.
5. The inside and the metal parts of the fusing unit become extremely hot
   while the copier is operating. Be careful to avoid touching those
   components with your bare hands.

HEALTH SAFETY CONDITIONS
1. Toner and developer are non-toxic, but if you get either of them in your
   eyes by accident, it may cause temporary eye discomfort. Try to remove
   with eye drops or flush with water as first aid. If unsuccessful, get
   medical attention.

OBSERVANCE OF ELECTRICAL SAFETY STANDARDS
1. The copier and its peripherals must be installed and maintained by a
   customer service representative who has completed the training course
   on those models.

SAFETY AND ECOLOGICAL NOTES FOR DISPOSAL
1. Do not incinerate toner cartridges or used toner. Toner dust may ignite
   suddenly when exposed to open flame.
2. Dispose of used toner, developer, and organic photoconductors in
   accordance with local regulations. (These are non-toxic supplies.)
3. Dispose of replaced parts in accordance with local regulations.
     SECTION 1
     OVERALL
MACHINE INFORMATION
20 December 1996                                           SPECIFICATIONS




                                                                            Information
1. SPECIFICATIONS




                                                                              Overall
Configuration:         Desk Top
Copy Process:          Dry electrostatic transfer system
Originals:             Sheet/Book
Original Size:         Maximum: A3/11" x 17"
Copy Paper Size:       Maximum: A3/11" x 17"
                       Minimum:
                           A5/51/2" x 81/2" sideways (Paper tray feed)
                           A6/51/2" x 81/2" lengthwise (By-pass feed)
                       Non-standard sizes:
                           Vertical 45 mm ~ 308 mm, 1.8" ~ 12"
                           Horizontal 148 mm ~ 432 mm, 5.8" ~ 17"
Copy Paper Weight:     Paper tray feed: 64 to 90 g/m2, 17 to 24 lb
                       By-pass feed: 52 to 157 g/m2, 14 to 42 lb
Reproduction Ratios:                      Metric Version    Inch Version
                                              200%             200%
                          Enlargement         141%             155%
                                              122%             129%
                            Full Size         100%             100%
                                               93%              93%
                                               82%              74%
                           Reduction
                                               71%              65%
                                               50%              50%


Zoom:                  From 50% to 200% in 1% steps
Copying Speed:         15 copies/minute (A4/8.5" x 11" sideways)
                        9 copies/minute (A3/11" x 17")
Warm-up Time:          120 V machines: Less than 30 seconds (at 23
