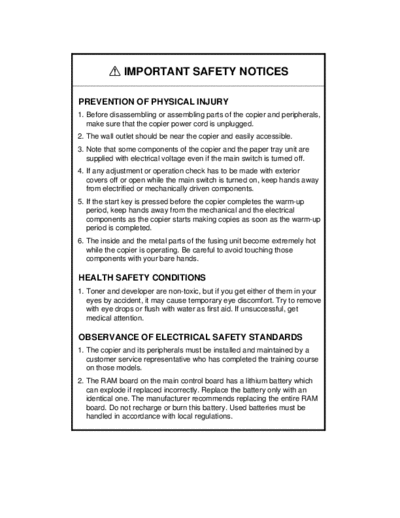

Image preview - the first page of the document
>> Download ft5640sm documenatation <<
Text preview - extract from the document
IMPORTANT SAFETY NOTICES
PREVENTION OF PHYSICAL INJURY
1. Before disassembling or assembling parts of the copier and peripherals,
make sure that the copier power cord is unplugged.
2. The wall outlet should be near the copier and easily accessible.
3. Note that some components of the copier and the paper tray unit are
supplied with electrical voltage even if the main switch is turned off.
4. If any adjustment or operation check has to be made with exterior
covers off or open while the main switch is turned on, keep hands away
from electrified or mechanically driven components.
5. If the start key is pressed before the copier completes the warm-up
period, keep hands away from the mechanical and the electrical
components as the copier starts making copies as soon as the warm-up
period is completed.
6. The inside and the metal parts of the fusing unit become extremely hot
while the copier is operating. Be careful to avoid touching those
components with your bare hands.
HEALTH SAFETY CONDITIONS
1. Toner and developer are non-toxic, but if you get either of them in your
eyes by accident, it may cause temporary eye discomfort. Try to remove
with eye drops or flush with water as first aid. If unsuccessful, get
medical attention.
OBSERVANCE OF ELECTRICAL SAFETY STANDARDS
1. The copier and its peripherals must be installed and maintained by a
customer service representative who has completed the training course
on those models.
2. The RAM board on the main control board has a lithium battery which
can explode if replaced incorrectly. Replace the battery only with an
identical one. The manufacturer recommends replacing the entire RAM
board. Do not recharge or burn this battery. Used batteries must be
handled in accordance with local regulations.
SAFETY AND ECOLOGICAL NOTES FOR DISPOSAL
1. Do not incinerate the toner bottle or the used toner. Toner dust may
ignite suddenly when exposed to open flame.
2. Dispose of used toner, developer, and organic photoconductor
according to local regulations. (These are non-toxic supplies.)
3. Dispose of replaced parts in accordance with local regulations.
4. When keeping used lithium batteries in order to dispose of them later,
do not put more than 100 batteries per sealed box. Storing larger
numbers or not sealing them apart may lead to chemical reactions and
heat build-up.
A204/A206/A207/A208/A210/A211
COPIER
SERVICE MANUAL
The A204 copier is based on the A153 copier.
The A206 copier is based on the A155 copier.
The A207 copier is based on the A156 copier.
The A208 copier is based on the A157 copier.
The A210 copier is based on the A159 copier.
The A211 copier is based on the A160 copier.
Only the differences from the base copiers are described in the
following pages. Therefore, this documentation should be treated
as an insert version of the base copier's service manual, although
it has a separate binder. It should always be utilized together with
the base copier's service manual.
31 March 1997 SPECIFICATIONS
1. SPECIFICATIONS
Copier
NOTE: Only items marked with V are different from A153, A155, A156,
A157, A159, and A160 copiers.
Configuration: Desktop
Copy Process: Dry electrostatic transfer system
Originals: Sheet/Book
Original Size: Maximum: A3/11" x 17"
Copy Paper Size: Maximum: A3/11" x17" (Paper trays)
Minimum: A5/81/2" x 51/2" sideways (Paper trays)
A4/11" x 81/2" sideways (LCT)
A6/51/2" x 81/2" lengthwise (By-pass)
Duplex Copying: Maximum: A3/11" x 17"
Minimum: A5/81/2" x 51/2" (sideways)
V Copy Paper Weight: Paper tray: 52 ~ 128 g/m2, 14 ~ 34 lb
By-pass: 52 ~ 157 g/m2, 14 ~ 42 lb
LCT: 52 ~ 128 g/m2, 14 ~ 34 lb
Duplex copying: 64 ~ 105 g/m2, 17 ~ 24 lb
Reproduction Ratios: 4 Enlargement and 6 Reduction
A4/A3 Version LT/DLT Version
200% 200%
141% 155%
Enlargement
122% 129%
115% 121%
Full size 100% 100%
93% 93%
82% 85%
75% 77%
Reduction
71% 74%
65% 65%
50% 50%
1
SPECIFICATIONS 31 March 1997
Power Source: 120 V/60 Hz:
More than 12 A (for North America)
220 V ~ 240 V/50 Hz:
More than 7 A (for Europe)
220 V/50 Hz:
More than 7 A (for Asia)
110 V/60 Hz:
More than 13 A (for Taiwan)
220 V/60 Hz:
More than 7 A (for Saudi Arabia, Philippines)
V Power Consumption:
A204, A206, and A207 copiers A208, A210, and A211 copiers
Copier Only Full System Copier Only Full System
Maximum 1.35 kW 1.40 kW 1.35 kW 1.40 kW
Copying 1.15 kW 1.21 kW 0.90 kW 1.00 kW
Warm-up 1.21 kW 1.23 kW 0.98 kW 1.00 kW
Stand-by 0.18 kW 0.20 kW 0.16 kW 0.18 kW
