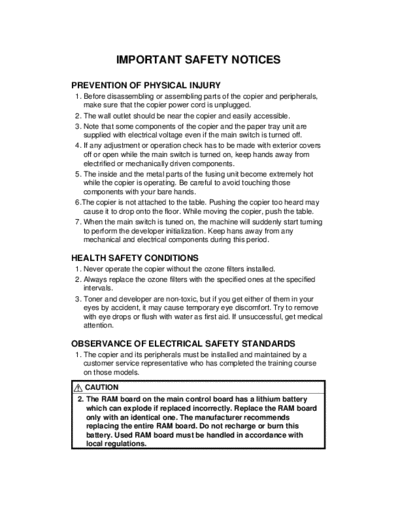

Image preview - the first page of the document

>> Download ft7650sm documenatation <<

Text preview - extract from the document

IMPORTANT SAFETY NOTICES

PREVENTION OF PHYSICAL INJURY
1. Before disassembling or assembling parts of the copier and peripherals,
make sure that the copier power cord is unplugged.
2. The wall outlet should be near the copier and easily accessible.
3. Note that some components of the copier and the paper tray unit are
supplied with electrical voltage even if the main switch is turned off.
4. If any adjustment or operation check has to be made with exterior covers
off or open while the main switch is turned on, keep hands away from
electrified or mechanically driven components.
5. The inside and the metal parts of the fusing unit become extremely hot
while the copier is operating. Be careful to avoid touching those
components with your bare hands.
6.The copier is not attached to the table. Pushing the copier too heard may
cause it to drop onto the floor. While moving the copier, push the table.
7. When the main switch is tuned on, the machine will suddenly start turning
to perform the developer initialization. Keep hans away from any
mechanical and electrical components during this period.

HEALTH SAFETY CONDITIONS
1. Never operate the copier without the ozone filters installed.
2. Always replace the ozone filters with the specified ones at the specified
intervals.
3. Toner and developer are non-toxic, but if you get either of them in your
eyes by accident, it may cause temporary eye discomfort. Try to remove
with eye drops or flush with water as first aid. If unsuccessful, get medical
attention.

OBSERVANCE OF ELECTRICAL SAFETY STANDARDS
1. The copier and its peripherals must be installed and maintained by a
customer service representative who has completed the training course
on those models.

CAUTION
2. The RAM board on the main control board has a lithium battery
which can explode if replaced incorrectly. Replace the RAM board
only with an identical one. The manufacturer recommends
replacing the entire RAM board. Do not recharge or burn this
battery. Used RAM board must be handled in accordance with
local regulations.
SAFETY AND ECOLOGICAL NOTES FOR DISPOSAL
1. Do not incinerate the toner cartridge or the used toner. Toner dust may
ignite suddenly when exposed to open flame.
2. Dispose of used toner, developer, and organic photoconductor according
to local regulations. (These are non-toxic supplies.)
3. Dispose of replaced parts in accordance with local regulations.
4. When keeping used RAM boards in order to dispose of them later, do not
put more than 100 RAM boards per sealed box. Storing larger numbers
or not sealing them apart may lead to chemical reactions and heat
build-up.
SECTION 1
OVERALL MACHINE
INFORMATION
15 July 1996 SPECIFICATION

1. SPECIFICATION

Information
Overall
Configuration: Console
Copy Process: Dry electrostatic transfer system
Toner Supply Control: Fuzzy Control
Photoconductor: OPC drum
Originals: Sheet/Book
Original Size: Maximum A3/11" x 17"
Original Alignment: Left rear corner
Copy Paper Size: Maximum A3/11" x 17"
Minimum A5/51/2" x 81/2" (Tray)
B5/81/2" x 11" (1.5 k LCT)
A6/51/2" x 81/2" (By-pass)
Duplex Copying: Maximum A3/11" x 17"
Minimum A5/51/2" x 81/2" (sideways)
Copy Paper Weight: Paper tray: 52 ~ 128 g/m2, 14 ~ 34 lb
Bypass feed table: 52 ~ 157 g/m2, 14 ~ 42 lb
Duplex copying: 64 ~ 104 g/m2, 17 ~ 24 lb
Reproduction Ratios: 4 Enlargement and 6 Reduction

A4/A3 Version LT/LDG Version
200% 200%
141% 155%
Enlargement
122% 129%
115% 121%
Full Size 100% 100%
93% 93%
82% 85%
75% 77%
Reduction
71% 74%
65% 65%
50% 50%

1-1
SPECIFICATION 15 July 1996

Power Source: 115 V, 60 Hz, more than 20 A (for N.A)
220 ~ 240 V, 50 Hz/60 Hz, more than 10 A (for
Europe and Asia)
Power Consumption: A175 copier

Copier only Full system*
Warm-up 1.20 kVA 1.22 kVA
Stand-by 0.22 kVA 0.24 kVA
Copying 1.40 kVA 1.40 kVA
Maximum 1.70 kVA 1.75 kVA

A176/A191 copiers

Copier only Full system*
Warm-up 1.20 kVA 1.22 kVA
Stand-by 0.22 KVA 0.24 kVA
Copying 1.50 kVA 1.50 kVA
Maximum 1.70 kVA 1.75 kVA

A177/A192 copiers

Copier only Full system*
Warm-up 1.20 kVA 1.22 kVA
Stand-by 0.22 kVA 0.24 kVA
Copying 1.60 kVA 1.60 kVA
Maximum 1.70 kVA 1.75 kVA

*Full System:
