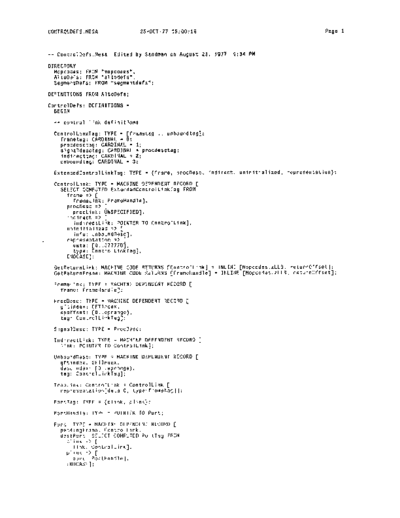

Image preview - the first page of the document



>> Download ControlDefs.mesa_Oct77 documenatation <<

Text preview - extract from the document

CONTROLDEFS.MESA                26-0CT-77 16:00:16                                      Page 1


-- ControlOefs.Mesa   Edited by Sandman on August 23, 1977   9:34 PM
DIRECTORY
  Mopcodes: FROM "mopcodes",
  AltoDefs: FROM "altodefs",
  SegmentOefs: FROM "segmentdefs";
DEFINITIONS FROM AltoOefs;
ControlDefs: DEFINITIONS '"
  BEGIN
  -- control link definitions
  ControlLinkTag: TYPE = [frametag .. unboundtag];
    frametag: CARDINAL'" 0;
    proedesctag: CARDINAL'" 1;
    signaldesctag: CARDINAL = proedesctag;
    indirecttag: CARDINAL'" 2;
    unboundtag: CARDINAL'" 3;
  ExtendedControlLinkTag: TYPE = {frame, procDesc, indirect, uninitialized, representation};
  ControlLink: TYPE", MACHINE DEPENDENT RECORD [
    SELECT COMPUTED ExtendedControlLinkTag FROM
      frame =) [
         frameLink: FrameHandle],
      procDese =) [
         procLink: UNSPECIFIED],
      indirect =) [
         indirectLink: POINTER TO ControlLink].
      uninitialized =) [
         info: UnboundDesc],
      representation =) [
         data: [0 .. 37777B],
         type: ControlLinkTag],
      ENDCASE] :
  GetReturnLink: MACHINE CODE RETURNS [ControlLink] = INLINE [Mopcodes.zLLB, returnOffset];
  GetReturnFrame: MACHINE CODE RETURNS [FrameHandle] = INLINE [Mopcodes.zLLB. returnOffset]:
  FrameLink: TYPE = MACHINE DEPENDENT RECORD [
    frame: FrameHandle];
  ProcDesc: TYPE = MACHINE DEPENDENT RECORD [
    gftindex: GFTIndex,
    epoffset: [0 .. eprange).
    tag: ControlLinkTag];
 SignalDesc: TYPE = ProcDesc:
  IndirectLink: TYPE = MACHINE DEPENDENT RECORD [
    link: POINTER TO ControlLink]:
  UnboundDese: TYPE ='MACHINE DEPENDENT RECORD [
    gftindex: GFTIndex,
    descindex: [0 .. eprange),
    tag: ControlLinkTag];
  TrapLink: ControlLink = ControlLink [
    representation[data:O, type:frametag]]:
  PortTag: TYPE = {clink, plink}:
  PortHandle: TYPE = POINTER TO Port;
  Port: TYPE = MACIITNE DEPENDENT RECORD
    pendingFrame: ControlLink.
    destPort: SELfCT COMPUTED PortTag FROM
      clink =) [
        link: ControlLink].
      plink =) [
        port: PortHandle].
      fNOCASE] ;
CONTROlDEFS.MESA                  25-0CT-77 15:00:16                             Page 2


  -- frame definitions
  FrameClass: TYPE" {global. local. signal, catch}:
  FrameBase: TYPE .. MACHINE DEPENDENT RECORD [
    accesslink: GlobalFrameHandle,
    pc: WordPC.
    returnlink: Controllink.
    extensions: SELECT COMPUTED FrameClass FROM
      global .. ) [
        codebase: POINTER.
        gftindex: ProeDese.
        ownerlink: GlobalFrameHandle.
        bindentry, bindlink: GlobalFrameHandle,
        codesegment: SegmentDef~.FileSe~meritHandle.
        symbolsegment: SegmentOefs.FileSegmentHandle].
      local =) [
        unused: UNSPECIFIED].
      signal .. ) [
        mark: BOOLEAN.
        unused: [0 .. 77777B]].
      catch =) [
        unused: UNSPECIFIED.
        staticlink: FrameHandle].
      ENDCASE] :
  FrameHandle: TYPE = POINTER TO FrameBase:
  NULLFrame: GlobalFrameHandle .. LOOPHOLE[O]:
  GlobalFrameHandle: TYPE = POINTER TO global FrameBase:
  Alloc: MACHINE CODE [CARDINAL] RETURNS [POINTER] .. INLINE[Mopcodes.zALLOC]:
  Free: MACHINE CODE [POINTER] .. INLINE[Mopcodes.zFREE]:

  -- The following offsets are used by the compiler and MUST
  -- reflect the field offsets in the definition of FrameBase
  accessOffset: CARDINAL = 0:
  pcOffset: CARDINAL" 1;
  returnOffset: CARDINAL" 2:
  codebaseOffset: CARDINAL = 3;
  gftiOffset: CARDINAL = 4;
  ownerOffset: CARDINAL" 5;
  bindentryOffset: CARDINAL .. 6;
  bindlinkOffset: CARDINAL" 1;
  codesegmentOffset: CARDINAL = 8:
  symbolsegmentOffset: CARDINAL" 9;
  -- efficiently addressable portion of frames
  globalbase: CARDINAL = 10;
  globalslots: CARDINAL = 8;
  procbase: CARDINAL = globalbase + global slots:
  localbase: CARDINAL" 4;
  localslots: CARDINAL" 8:
  framelink: CARDINAL" localbase:
  lprocslots, procslots: CARDINAL .. 16:
  -- code segments
  WordPC: TYPE .. RECORD [INTEGER]:
  BytePC: TYPE = RECORD [CARDINAL]:
  InstWord: TYPE = MACIIINE DEPfNDENT RECORD
    oddbyte, evenbyte: BYTE];
  fielddescr iptor: TYPE = MAClllNE DEPENDENT RECORD [
    posn. siLe: [0 .. 17B]];
  epmin: CARDINAL = 1: -- lower bound (module dependent)
  oprange: CARDINAL = 32;
  CsegPrefix:     TYPE = MACIIINE DfPENDfNT RfCORD
    swapinfo:     WORD,
    ngfi: [1.    .4],
    1 inkbase:    [global base .. globalbase+16).
                          ~                 I
CONTROLDEFS.MESA               25~OCT~77   15:00:16                             Page 3


    nlinks: [0 .
