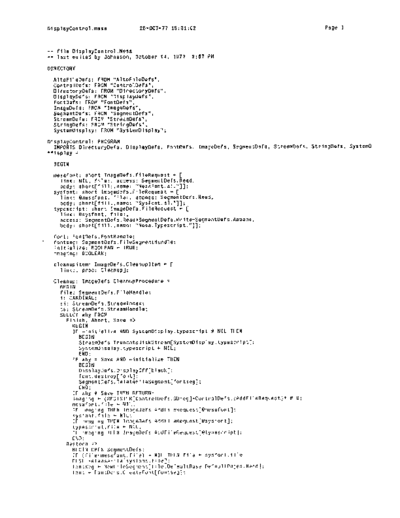

Image preview - the first page of the document



>> Download DisplayControl.mesa_Oct77 documenatation <<

Text preview - extract from the document

DisplayControl.mesa          25-0CT-77 15:01:02                                          Page 1


-- file DisplayControl.Mesa
-- last edited by Johnsson, October 14, 1977   2:57 PM
DIRECTORY
 AltoFileDefs: FROM "AltoFileDefs",
 ControlOefs: FROM "ControlDefs",
 OirectoryOefs: FROM "OirectoryOefs",
 OisplayOefs: FROM "OisplayOefs",
 FontOefs: FROM "FontDefs",
 ImageOefs: FROM "ImageOefs",
 SegmentDefs: FROM "SegmentOefs",
 StreamOefs: FROM "StreamDefs",
 StringOefs: FROM "StringDefs",
 SystemOisplay: FROM "SystemOisplay";
OisplayControl: PROGRAM
  IMPORTS OirectoryOefs. DisplayOefs, FontDefs. ImageDefs. SegmentDefs. StreamDefs. StringDefs. SystemD
**isplay =
  BEGIN
 mesafont: short ImageOefs.FileRequest ~ [
   link: NIL. file:. access: SegmentOefs.Read.
   body: Short[fill:.name: "MesaFont.al."]];
 sysfont: short ImageOefs.FileRequest ~ [
   link: @mesafont. file:. access: SegmentDefs.Read,
   body: short[fill:.name: "SysFont.al."]];
 typescript: short ImageDefs.FileRequest ~ [
   link: @Sysfont. file:.
   access: SegmentDefs.Read+SegmentDefs.Write+SegmentOefs.Append.
   body: short[fill:.name: "Mesa.Typescript."]];
  font: FontOefs.FontHandle;
  fontseg: SegmentDefs.FileSegmentHandle;
  initialize: BOOLEAN ~ TRUE;
  imaging: BOOLEAN;
  cleanupitem: ImageDefs.CleanupItem   ~   [
    link:. proc: Cleanup]:
  Cleanup: ImageDefs.CleanupProcedure
    BEGIN
    file: SegmentDefs.FileHandle;
    i: CARDINAL;
    si: StreamDefs.StreamIndex:
    ts: StreamDefs.StreamHandle;
    SELECT why FROM
      Finish. Abort. Save =>
        BEGIN
        IF -initialize AND SystemDisplay.typescript # NIL THEN
           BEGIN
           StreamDefs.TruncateDiskStream[SystemDisplay.typescript]:
           SystemDisplay.typescript ~ NIL;
           END;
        IF why = Save AND -initialize THEN
           BEGIN
           DisplayDefs.DisplayOff[black]:
           font.destroy[font);
           SegmentDefs.DeleteFileSegment[fontseg]:
           END:
        If. why # Save TIIEN RETURN:
         imaging ~ (REGISTER[ControlDefs.SDreg]+ControlDefs.sAddFileRequest)t   #   0:
        mesafont.file ~ NIL;
        IF imaging TH[N ImageDefs.AddFileRequest[@~esafont];
        sysfont.file ~ NIL;
        If Imaging THEN ImageDefs.AddFileRequest[@sysfont];
        typescript.file ~ NIL;
        IF imaging THfN ImageOefs.AddfileRequest[@typescript];
        END;
      Restore =)
        BrGIN OPEN SegmentDefs;
        If (file~mesafont.file) = NIL TIIEN file ~ sysfonl.file
        ELSE ReleaseFile[sysfont.file);
        fonLreg ~ NewFileSegment[file.DefaultBase,DefaultPages,Read];
        font ~ FontDefs.Createfont[fontseg];
DisplnyControl.mesa          25-0CT-77 15:01:02                                   Page 2


         IF initialize THEN
           BEGIN initialize ~ FALSE; DisplayDefs.InitDisplay(72,30,20,font] END
         ELSE
           BEGIN SystemDisplay.SetFont[font]; DisplayDefs.DisplayOn[] END;
         IF (file~typescript.file) = NIL THEN
           file ~ NewFile[typescript.name, Read+Write+Append, DefaultVersion];
         SystemDisplay.SetTypeScript[
           StreamDefs.CreateByteStream[file, Read+Write+Append]]:
         END;
      InLd =)
         IF SystemDisplay.typescript # NIL THEN
           StreamDefs.OpenDiskStream[SystemOisplay.typescript];
      OutLd =)
         BEGIN OPEN StreamDefs;
         IF (ts~SystemDisplay.typescript) = NIL THEN RETURN;
         si ~ Getlndex[ts];
         ts.put[ts,15C];
         FOR i IN [0 .. 9) DO ts.put(ts, '-] ENDLOOP:
         SetIndex[ts, Si];
         CloseOiskStream(ts];
         END;
      ENDCASE;
    END;
 -- file requests
 ProcessFileRequests: PROCEDURE [rHead: POINTER TO ImageDefs.FileRequest] =
   BEGIN OPEN AltoFileDefs;
   checkone: PROCEDURE (fp: POINTER TO FP, dname: STRING] RETURNS [BOOLEAN] =
     BEGIN
     ss: StringDefs.SubStringDescriptor ~ (dname,O,dname.length]:
     r: POINTER TO ImageOefs.FileRequest;
     prev: POINTER TO ImageDefs.FileRequest ~ NIL;
     FOR r ~ rHead, r.link UNTIL r = NIL DO
       IF (WITH r SELECT FROM
              long =) StringDefs.EquivalentSubStrings(@ss,@name],
              short =) StringDefs.EquivalentString[dname,name],
              ENDCASE =) FALSE) THEN
          BEGIN
          IF r.file = NIL THEN r.file ~ SegmentDefs.InsertFile(fp,r.access]
          ELSE r.file.fp ~ fpt;
          IF prev = NIL THEN rHead ~ r. link
          ELSE prevo link ~ r.1ink;
          END
       ELSE prev ~ r;
       ENDLOOP;
     RETURN(rHead = NIL]
     END;
   DirectoryDefs.EnumerateDirectory[checkone];
   END;
 ImageDefs.AddCleanupProcedure[@cleanupitem];
 C1 eanup[Save];
 IF imaging THEN STOP ELSE ProcessFileRequests[@typescript];
 Cleanup[Restore];
 END ...
