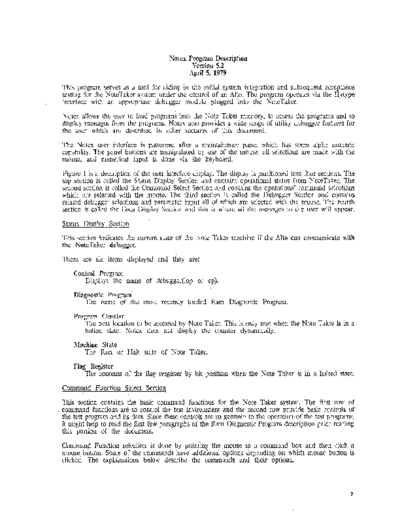

Image preview - the first page of the document



>> Download 19790405_Notex_Program_Description documenatation <<

Text preview - extract from the document

                                       Notex Program Description
                                              Version 5.2
                                             April 5, 1979
This program serves as a tool for aiding in the initial system integration and subsequent acceptance
testing for the NoteTaker system under the control of an Alto. The program operates via the Hytype
interface with an appropriate debugger module plugged into the NoteTaker.
Notex allows the user to load programs into the Note Taker memory, to access the programs and to
display messages from the programs. Notex also provides a wide range of utility debugger features for
the user which are described in other sections of this document.
The Notex user interface is patterned after a maintainence panel which has some alpha numeric
capability. The panel buttons are manipulated by use of the mouse, all selections are made with the
mouse, and numerical input is done via the keyboard.
Figure 1 is a description of the user interface display. The display is partitioned into four sections. The
top section is called the Status Display Section and contains operational status from NoteTaker. The
second section is called the Command Select Section and contains the operational command selections
which are selected with the mouse. The third section is called the Debugger Section and contains
related debugger selections and parameter input all of which are selected with the mouse. The fourth
section is called the Data Display Section and this is where all the messages to the user will appear.
Status Displav Section
This section indicates the
