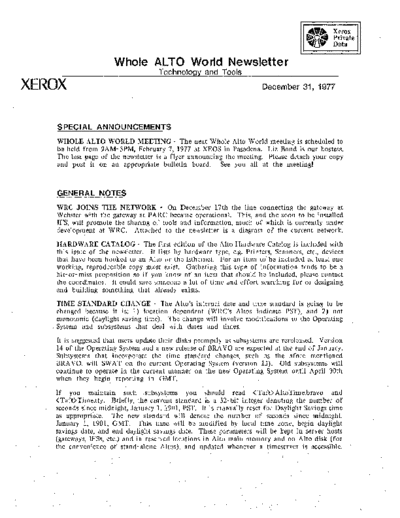

Image preview - the first page of the document



>> Download Whole_ALTO_World_Newsletter_1977-1980 documenatation <<

Text preview - extract from the document

                                                                                              Xerox
                                                                                              Private
                                                                                              Data

                      Whole ALTO World Newsletter
                                    Technology and Tools
XEROX                                                                  December 31, 1977




   SPECIAL ANNOUNCEMENTS
   WHOLE ALTO WORLD MEETING - The next Whole Alto World meeting is scheduled to
   be held from 9AM- 3PM, February 7, 1977 at XEOS in Pasadena. Liz Bond is our hostess.
   The last page of the newsletter is a flyer announcing the meeting. Please detach your copy
   and post it on an appropriate bulletin board. See you all at the meeting!



   GENERAL NOTES
   WRC JOINS THE NETWORK - On December 17th the line connecting the gateway at
   Webster with the gateway at PARC became operational. This, and the soon to be installed
   IFS, will promote the sharing of tools and information, much of which is currently under
   development at WRC. Attached to the newsletter is a diagram of the current network.

   HARDWARE CATALOG - The first edition of the Alto Hardware Catalqg is included with
   this issue of the newsletter. It lists by hardware type, e.g. Printers, Scanners, etc., devices
   that have been hooked to an Alto or the Ethernet. For an item to be included at least one
   working, reproducable copy must exist. Gathering this type of information tends to be a
   hit- or- miss proposition so if you know of an item that should be included, please contact
   the coordinator. It could save someone a lot of time and effort searching for or designing
   and building something that already exists.

   TIME STANDARD CHANGE - The Alto's internal date and time standard is going to be
   changed because it is: 1) location dependent (WRC's Altos indicate PST), and 2) not
   monotonic (daylight saving time). The change will involve modifications to the Operating
   System and subsystems that deal wi th dates and times.

   It is suggested that users update their disks promptly as subsystems are rereleased. Version
   14 of the Operating System and a new release of BRAVO are expected at the end of January.
   Subsystems that incorporate the time standard changes, such as the afore mentioned
   BRA va, will SWAT on the current Operating System (version 13). Old subsystems will
   continue to operate in the current manner on the new Operating System until April 30th
   when they begin reporting in GNIT.

   If you maintain such subsystems you should read  AltoTinle.bravo and
   (Taft>Time.tty. Briefly, the current standard is a 32- bit integer denoting the number of
   seconds since midnight, January 1, 1901, PST. It is manually reset for Daylight Savings time
   as appropriate. The new standard will denote the number of seconds since midnight,
   January 1, 1901, GMT. This time will be modified by local time zone, begin daylight
   savings date, and end daylight savings date. These parameters will be kept in server hosts
   (gateways, IFSs, etc.) and in reserved locations in Alto main memory and on Alto disk (for
   the convenience of stand- alone Altos), and updated whenever a timeserver is accessible.
                                                                                          ~v~ Xerox
                   Whole ALTO World Newsletter                                            ~Q~ Private      2
                                                                                          ~O'" Data

PROPRIETARY INFORMATION
