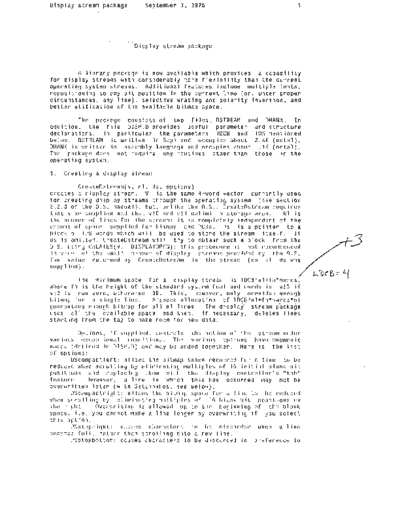

Image preview - the first page of the document
Display_Stream_Package_Sep75


>> Download Display_Stream_Package_Sep75 documenatation <<

Text preview - extract from the document
Display stream package                   September 3. 1975                                                1




                                    Display stream package



        A library package is now available which provides a capability
for display streams with considerably more flexihility than the current
operating system streams. Additional features include multiple fonts.
repositioning to any bit position in the current line (or, under proper
circumstances, any line). selective erasing and polarity inversion, and
better util ization of the availab'le bitmap space.

        The package consists of two files, DSTREAM and DHANX. In
addition. the file DISP.D provides useful parameter and structure
declarations.   in particular the parameters lOCB and 105 mentioned
below. DSTREAM is written in Bcpl and occupies about 2.4K (octal).
DHANX is written in assembly language and occupies about .1K (octal).
The package does not require any routines other than those in the
operating system.

1.    Creating a display stream

             CreateDstream(v, nl, ds, options)
creates a display stream. V is the samB 4-word vector currently used
for creating display streams through the operating system (see section
3.2.3 of the 0.5. manual). but, unlike tile 0.5., CreateDstream requires
that v be supplied and that v!O and v!l delimit a storage area.                            Nl is
the number of 1 ines for the stream: it is completely independent of the
amount of sflace supplied for bitmap and DCBs. Ds is a pointer to a
h I 0 c k 0 r I [) S V/O r d s wh i c h will      be use d to s tor e the s t ream. its elf.  If
ds is omitted. Cl'eateDstream will                     try to obtain such a block from the
0.5. using CHLAfES(v, DISPLAYOPErJ): tiltS procedure is not reCOrili11ended
in lJi~~\'! of. '. IH:\ ')mall        nt.lIllber of .displ(lY str'ea''1S provided by    the O.S.
Ine vaiue returned by CreateUstream is tile stream (dS if ds was
supplied).

            The    mlnlmum space          for a      display stream           is lDCB
