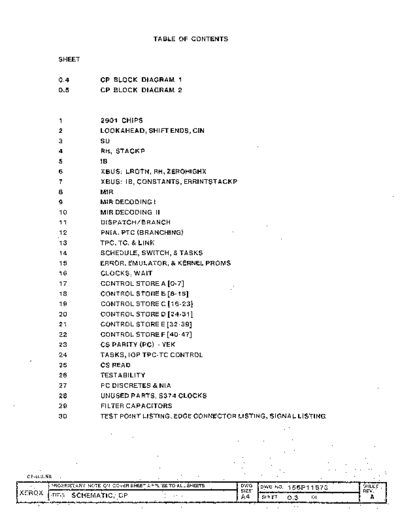

                                             TABLE OF CONTENTS


              SHEET


              0.4          CP BLOCK DIAGRAM 1
              0.5          CP BLOCK DIAGRAM 2



              1            2901 CHIPS
              2            LOOKAHEAD, SHIFT ENDS, CIN
              3            SU
              4            RH, STACKP
              5            IB
              6            XBUS: LROTN, RH, ZEROHIGHX
              7            XBUS: IB, CONSTANTS, ERRINTSTACKP
              8            MIR
              9            MIR DECODING I
              10           MIR DECODING II
              '1           DISPATCH/BRANCH
              12           PNIA, PTC (BRANCHING)
              13           TPC, TC, & LINK
              14           SCHEDULE, SWITCH, & TASKS
              15           ERROR, EMULATOR, & KERNEL PROMS
              16           CLOCKS, WAIT
              17           CONTROL STORE A [0
