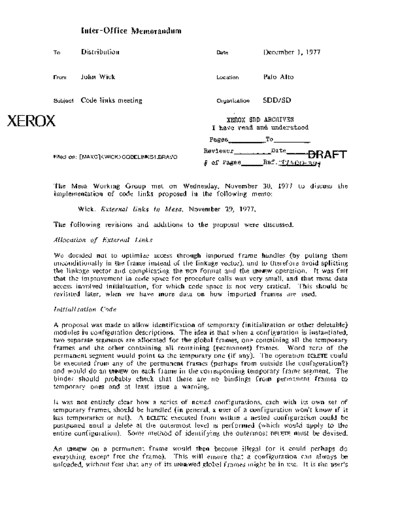

Image preview - the first page of the document
>> Download 19771201_Code_Links_Meeting documenatation <<
Text preview - extract from the document
Inter-Office Memorandum
To Distribution Date December 1. 1977
From John Wick Location Palo Alto
Subject Code links meeting Organization SOD/SO
XEROX XEROX SDD ARCHIVES
I have read and understood
Pages _________To _________
Revlewer _ _ _ _ Date_ _+O RIoolAFT ....
Filed on: [MAXC]CODELlNKS1.BRAVO
# of Pages _ _ _ Ref. ,-1.1 oS 00-- :'91-
The Mesa Working Group met on Wednesday, November 30, 1977 to discuss the
implementation of code links proposed in the following memo:
Wick. External links in Mesa. November 29, 1977.
The following revisions and additions to the proposal were discussed.
Allocation of External Links
We decided not to optimize access through imported frame handles (by putting them
unconditionally in the frame instead of the linkage vector), and to therefore avoid splitting
the linkage vector and complicating the BCD format and the UNNEW operation. It was felt
that the improvement in code space for procedure calls was very small, and that most data
access involved initialization, for which code space is not very critical. This should be
revisited later, when we have more data on how imported frames are used.
Initialization Code
A proposal was made to allow identification of temporary (initialization or other deletable)
modules in configuration descriptions. The idea is that when a configuration is instantiated,
two separate segments are allocated for the global frames, one containing all the temporary
frames and the other containing all remaining (permanent) frames. Word zero of the
permanent segment would point to the temporary one (if any). The operation DElETE could
be executed from any of the permanent frames (perhaps from outside the configuration?)
and would do an UNNEW on each frame in the corresponding temporary frame segment. The
binder should probably check that there are no bindings from permanent frames to
temporary ones and at least issue a warning.
It was not entirely clear how a series of nested configurations, each with its own set of
temporary frames, should be handled (in general, a user of a configuration won't know if it
has temporaries or not). A DELETE executed from within a nested configuration could be
postponed until a delete at the outermost level is performed (which would apply to the
entire configuration). Some method of identifying the outermost DElETE must be devised.
An UNNEW on a permanent frame would then become illegal (or it could perhaps do
everything except free the frame). This will ensure that a configuration can always be
unloaded, without fear that any of its UNNEwed global frames might be in use. It is the user's
Code links meeting 2
responsibility to insure that no references to the configuration's frames are on any call stack.
Binder/Loader Modifications
We next addressed the question of how and when the option for code links should be
specified. The central problem is that if links are determined at load time as they are now.
the loading time will be increased substantially by rewriting code segments. The idea is to
somehow determine the links at binding time, so they can be added to the code as it is being
rewritten to make room for the links. The following possibilities were identified:
o. Current "soft" scheme (all gfis are relocatable until loaded).
1. Bind as is currently done, but make room in the code segment for links, and mark
the module table entry in the BCD to indicate this. The move code option must be
specified.
Pros: Simplest to implement.
Cons: Loading will be slowed down considerably. as code containing links will have
to be swapped in and rewritten. (Currently, the code is not touched at all during
loading.)
2. Bind to an image file (and perhaps some number of BeDS which have been "hard""
bound to the same image file). Hard binding means that all code and frame links
are assigned real gfis.
Pros: Fast loading; no other BeDS need to be read.
Cons: Depends on the image file; no rebinding is possible. Real gfis can conflict
with those assigned to other BeDS. Requires work on the binder to input image files
and BeDS with real gfis.
3. "Hard" binding only for modules with code links. Relocatable links will be kept
in the frame fragments regardless of where the links are to be eventually stored.
Pros: As fast as case 2 if all modules have code links. Loader can rebind to other
image environments if necessary (perhaps by providing frame links, perhaps by
rewriting the code).
Cons: As slow as case 0 if any module has frame links. Real gfis can conflict with
those assigned to other BeDS. Requires work on the binder to input image files and
BeDS with real gfis.
At this point the scribe became confused, and failed to record the remainder of the
discussion. The next meeting will address the resolution of this issue.
Distribution:
Geschke
Lampson
Mitchell
Satterthwa ite
Mesa Group
