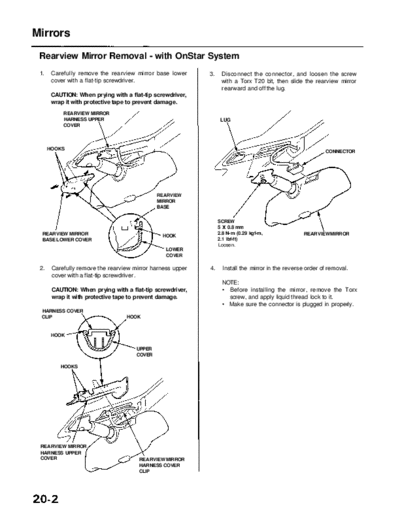

RL9604A20002A


>> Download RL9604A20002A documenatation <<

Text preview - extract from the document
                Main Menu                Table of Contents

Mirrors

 Rearview Mirror Removal - with OnStar System
 1.    Carefully remove the rearview mirror base lower       3.    Disconnect the connector, and loosen the screw
       cover with a flat-tip screwdriver.                          with a Torx T20 bit, then slide the rearview mirror
                                                                   rearward and off the lug.
       CAUTION: When prying with a flat-tip screwdriver,
       wrap it with protective tape to prevent damage.
           REARVIEW MIRROR
           HARNESS UPPER                                           LUG
           COVER



      HOOKS
                                                                                                             CONNECTOR




                                              REARVIEW
                                              MIRROR
                                              BASE

                                                                  SCREW
                                                                  5 x 0.8 mm
  REARVIEW MIRROR                                                 2.8 N-m (0.29 kgf-m,              REARVIEW MIRROR
                                                HOOK
  BASE LOWER COVER                                                2.1 Ibf-ft)
                                                                  Loosen.
                                                  LOWER
                                                  COVER

 2.    Carefully remove the rearview mirror harness upper    4.     Install the mirror in the reverse order of removal.
       cover with a flat-tip screwdriver.
                                                                    NOTE:
       CAUTION: When prying with a flat-tip screwdriver,
