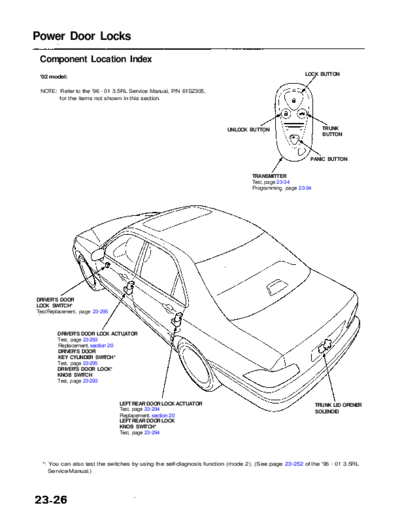

Image preview - the first page of the document
>> Download RL9604A23026A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Power Door Locks
Component Location Index
LOCK BUTTON
'02 model:
NOTE: Refer to the '96 - 01 3.5RL Service Manual, P/N 61SZ305,
for the items not shown in this section.
UNLOCK BUTTON TRUNK
BUTTON
PANIC BUTTON
TRANSMITTER
Test, page 23-34
Programming, page 23-34
DRIVER'S DOOR
LOCK SWITCH*
Test/Replacement, page 23-295
DRIVER'S DOOR LOCK ACTUATOR
Test, page 23-293
Replacement, section 20
DRIVER'S DOOR
KEY CYLINDER SWITCH*
Test, page 23-295
DRIVER'S DOOR LOCK*
KNOB SWITCH
Test, page 23-293
LEFT REAR DOOR LOCK ACTUATOR TRUNK LID OPENER
Test, page 23-294 SOLENOID
Replacement, section 20
LEFT REAR DOOR LOCK
KNOB SWITCH*
Test, page 23-294
*: You can also test the switches by using the self-diagnosis function (mode 2). (See page 23-252 of the '96 - 01 3.5RL
Service Manual.)
Main Menu Table of Contents
'02 model:
KEYLESS BUZZER
FRONT PASSENGER'S
DOOR LOCK SWITCH*
Test/Replacement, page 23-295
FRONT PASSENGER'S DOOR LOCK ACTUATOR
Test, page 23-293
Replacement, section 20
FRONT PASSENGER'S KEY
CYLINDER SWITCH*
Test, page 23-295
Replacement, section 20
FRONT PASSENGER'S DOOR LOCK
KNOB SWITCH*
Test, page 23-293
RIGHT REAR DOOR LOCK ACTUATOR
Test, page 23-294
Replacement, section 20
RIGHT REAR DOOR LOCK
KNOB SWITCH*
KEYLESS RECEIVER UNIT Test, page 23-294
Input Test, page 23-32
*: You can also test the switches by using the self-diagnosis function (mode 2). (See page 23-252 of the '96 - 01 3.5RL
Service Manual.)
