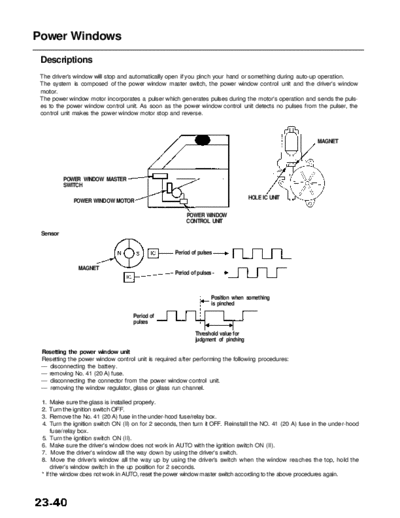

Image preview - the first page of the document



>> Download RL9604A23040A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents


Power Windows
 Descriptions
 The driver's window will stop and automatically open if you pinch your hand or something during auto-up operation.
 The system is composed of the power window master switch, the power window control unit and the driver's window
 motor.
 The power window motor incorporates a pulser which generates pulses during the motor's operation and sends the puls-
 es to the power window control unit. As soon as the power window control unit detects no pulses from the pulser, the
 control unit makes the power window motor stop and reverse.



                                                                                                            MAGNET




          POWER WINDOW MASTER
          SWITCH

                                                                                     HOLE IC UNIT
             POWER WINDOW MOTOR

                                                            POWER WINDOW
                                                            CONTROL UNIT

 Sensor


                                                     Period of pulses

               MAGNET
                                                     Period of pulses -



                                                                     Position when something
                                                                     is pinched

                                    Period of
                                    pulses

                                                              Threshold value for
                                                              judgment of pinching

 Resetting the power window unit
 Resetting the power window control unit is required after performing the following procedures:
 -- disconnecting the battery.
 -- removing No. 41 (20 A) fuse.
 -- disconnecting the connector from the power window control unit.
 -- removing the window regulator, glass or glass run channel.

 1.   Make sure the glass is installed properly.
 2.  Turn the ignition switch OFF.
 3.   Remove the No. 41 (20 A) fuse in the under-hood fuse/relay box.
 4.   Turn the ignition switch ON (II) on for 2 seconds, then turn it OFF. Reinstall the NO. 41 (20 A) fuse in the under-hood
      fuse/relay box.
 5. Turn the ignition switch ON (II).
 6. Make sure the driver's window does not work in AUTO with the ignition switch ON (II).
 7. Move the driver's window all the way down by using the driver's switch.
 8. Move the driver's window all the way up by using the driver's switch when the window reaches the top, hold the
      driver's window switch in the up position for 2 seconds.
 * If the window does not work in AUTO, reset the power window master switch according to the above procedures again.
