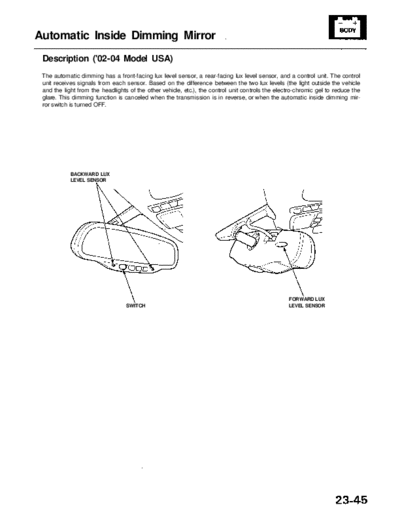

               Main Menu                 Table of Contents


Automatic Inside Dimming Mirror
 Description ('02-04 Model USA)
 The automatic dimming has a front-facing lux level sensor, a rear-facing lux level sensor, and a control unit. The control
 unit receives signals from each sensor. Based on the difference between the two lux levels (the light outside the vehicle
 and the light from the headlights of the other vehicle, etc.), the control unit controls the electro-chromic gel to reduce the
 glare. This dimming function is canceled when the transmission is in reverse, or when the automatic inside dimming mir-
 ror switch is turned OFF.




            BACKWARD LUX
            LEVEL SENSOR




                                                                                                  FORWARD LUX
                                  SWITCH                                                          LEVEL SENSOR
