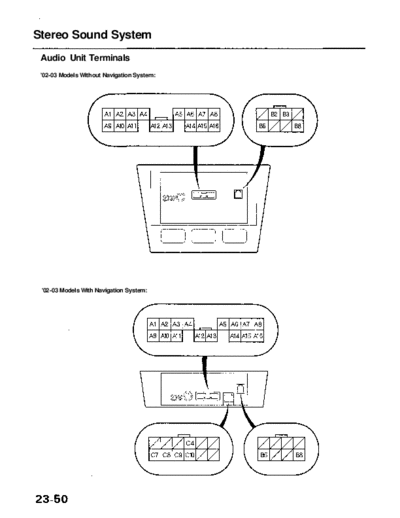

Image preview - the first page of the document



>> Download RL9604A23050A documenatation <<

Text preview - extract from the document

             Main Menu               Table of Contents


Stereo Sound System
 Audio Unit Terminals
 '02-03 Models Without Navigation System:




 '02-03 Models With Navigation System:
            Main Menu                     Table of Contents




 Cavity       Wire                     Connects to
  A1          BLU            Output (Right front +)
  A2          WHT            Output (Left front +)
  A3        RED/BLK          Lights-on signal
  A4        WHT/YEL          Constant power
                             ACC (Main stereo power
  A5        WHT/RED
                             supply)
  A6        YEL/BLU          Stereo amplifier (power)
  A7          ORN            Output (Left rear +)
  A8          YEL            Output (Right rear +)
   A9         BRN            Output (Right front -)
  A10         BLK            Output (Left front -)
  A11         PNK            OnStar system interface unit
                             (Cellular phone)
  A12         RED            Dash lights brightness
  A13       GRN/RED          Radio remote switch
  A14         BLK            Ground (G403)
  A15         GRN            Output (Left rear-)
  A16         RED            Output (Right rear-)


 *2B2         WHT            OnStar control unit (Line in +)
 *2B3       BLU/RED          OnStar control unit (Line in -)
      B5       BLK           Ground (G401,G402)
                         1
      B8   BLU or GRN*       Multiplex control unit (pas-
                             senger's)


Terminal B1, B4, B6 and B7 are not used.
      C4      WHT            Navigation unit
      C7     LT GRN          Navigation unit
  1
 * C8       BLU/RED          OnStar control unit (Line in -)
  1
 * C9         WHT            OnStar control unit (Line in +)
  C10          BLK           Navigation unit


Terminal C1, C2, C3, C5, C6, C11 and C12 are not used.

*1: With navigation system (USA)
*2: Without navigation system (USA)
