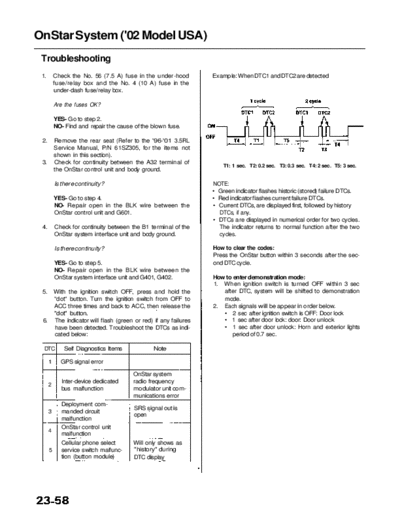

                   Main Menu                  Table of Contents


OnStar System ('02 Model USA)
 Troubleshooting
 1.       Check the No. 56 (7.5 A) fuse in the under-hood           Example: When DTC1 and DTC2 are detected
          fuse/relay box and the No. 4 (10 A) fuse in the
          under-dash fuse/relay box.

          Are the fuses OK?

          YES- Go to step 2.
          NO- Find and repair the cause of the blown fuse.

 2.       Remove the rear seat (Refer to the '96-'01 3.5RL
          Service Manual, P/N 61SZ305, for the items not
          shown in this section).
 3.       Check for continuity between the A32 terminal of
                                                                        T1: 1 sec. T2: 0.2 sec. T3: 0.3 sec. T4: 2 sec. T5: 3 sec.
          the OnStar control unit and body ground.

          Is there continuity?                                      NOTE:
