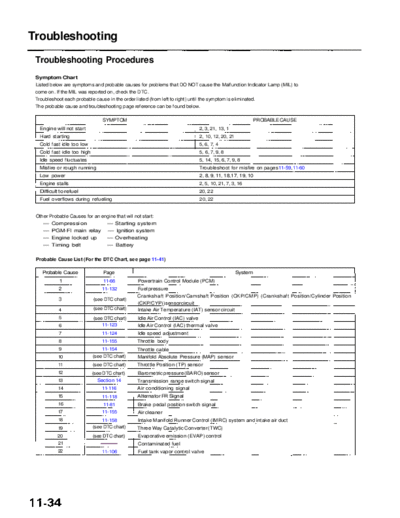

Image preview - the first page of the document
>> Download RL9604C11034A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Troubleshooting
Troubleshooting Procedures
Symptom Chart
Listed below are symptoms and probable causes for problems that DO NOT cause the Malfunction Indicator Lamp (MIL) to
come on. If the MIL was reported on, check the DTC.
Troubleshoot each probable cause in the order listed (from left to right) until the symptom is eliminated.
The probable cause and troubleshooting page reference can be found below.
SYMPTOM PROBABLE CAUSE
Engine will not start 2, 3, 21, 13, 1
Hard starting 2, 10, 12, 20, 21
Cold fast idle too low 5, 6, 7, 4
Cold fast idle too high 5, 6, 7, 9, 8
Idle speed fluctuates 5, 14, 15, 6, 7, 9, 8
Misfire or rough running Troubleshoot for misfire on pages 11-59, 11-60
Low power 2, 8, 9, 11, 18,17, 19, 10
Engine stalls 2, 5, 10, 21, 7, 3, 16
Difficult to refuel 20, 22
Fuel overflows during refueling 20, 22
Other Probable Causes for an engine that will not start:
-- Compression -- Starting system
-- PGM-FI main relay -- Ignition system
-- Engine locked up -- Overheating
-- Timing belt -- Battery
Probable Cause List (For the DTC Chart, see page 11-41)
Probable Cause Page System
1 11-66 Powertrain Control Module (PCM)
2 11-132 Fuel pressure
Crankshaft Position/Camshaft Position (CKP/CMP) (Crankshaft Position/Cylinder Position
3 (see DTC chart)
(CKP/CYP)) sensor circuit
4 (see DTC chart) Intake Air Temperature (IAT) sensor circuit
5 (see DTC chart) Idle Air Control (IAC) valve
6 11-123 Idle Air Control (IAC) thermal valve
7 11-124 Idle speed adjustment
8 11-155 Throttle body
9 11-154 Throttle cable
10 (see DTC chart) Manifold Absolute Pressure (MAP) sensor
11 (see DTC chart) Throttle Position (TP) sensor
12 (see DTC chart) Barometric pressure (BARO) sensor
13 Section 14 Transmission range switch signal
14 11-116 Air conditioning signal
15 11-118 Alternator FR Signal
16 11-81 Brake pedal position switch signal
17 11-155 Air cleaner
18 11-158 Intake Manifold Runner Control (IMRC) system and intake air duct
19 (see DTC chart) Three Way Catalytic Converter (TWC)
20 (see DTC chart) Evaporative emission (EVAP) control
21 Contaminated fuel
22 11-106 Fuel tank vapor control valve
